What is a PCB Board?

Estimated reading time: 12 minutes

Nowadays, printed circuit boards are used in practically all electronic devices. PCB is an acronym for printed circuit board. One essential component of contemporary electronics is a PCB. It serves as the framework for electronic parts. Consider it a tangible platform. All of the tiny components that go into making a device function are kept on this platform. The electrical connections between those components are also provided by it.

A PCB is typically a non-conductive flat board. It is an insulating material. This board has thin copper lines or paths on top. We call these copper routes traces. Traces work similarly to wires. They transfer electrical signals between components. In the absence of a PCB, a vast network of individual wires would be needed to connect thousands of components. Large-scale production of this would be impossible, messy, and unreliable.

Thus, the PCB resolves two primary issues. It first provides a specific mounting location for each component. As a result, the assembly procedure becomes systematic and scalable. It also establishes a stable and dependable network of connections. This guarantees steady and accurate electrical flow. The mechanical support comes from the board itself. The electrical circuit consists of copper traces.

We call the finished circuit board with all electronic parts a PCBA. PCBA means Printed Circuit Board Assembly. It is a complete circuit board. All electronic parts are fixed on it. This board is ready to use.

What’s the Process of a PCB?

A PCB’s function is simple. Electricity is directed to the appropriate locations. A design is where the process begins. A circuit blueprint is made by engineers. The locations of each component are shown in this blueprint. It also indicates the precise course that the electricity must take. After that, this design is printed onto the PCB.

The board’s major components cooperate to fulfill this purpose. Electricity is not conducted by the base material, which is frequently a fiberglass composite known as FR-4. This is very significant. It stops electrical signals in various traces from causing interference with one another. Isolation is provided.

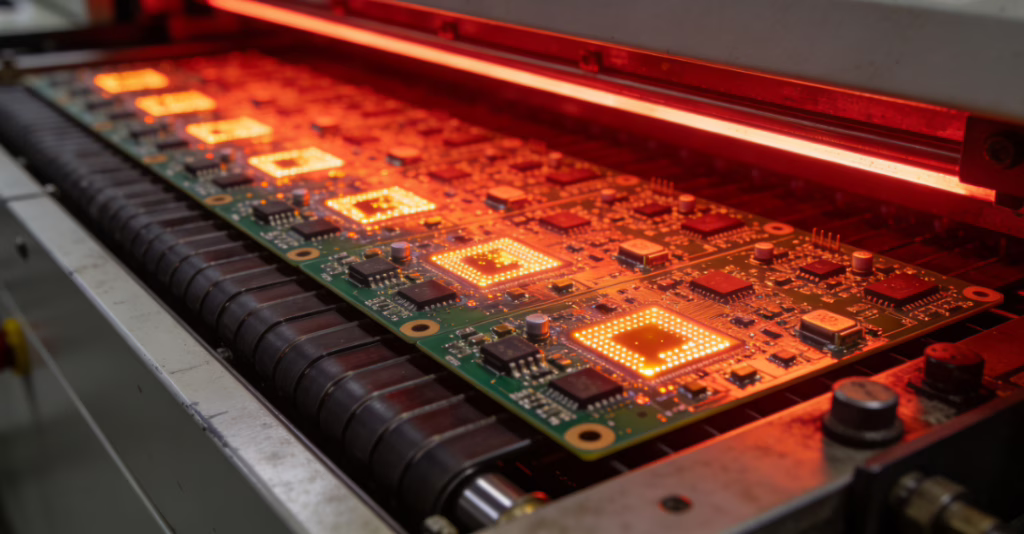

Components are then attached to the board. This is usually done through a process called soldering. Solder is a metal alloy that melts at a low temperature. It creates a strong physical and electrical bond between the component’s leads and the PCB’s copper pads. Once all components are soldered in place, the PCB becomes a functional electronic circuit.

When a device is turned on, power is transferred to the PCB. Through its traces, the PCB distributes this power to every component. Data signals, meanwhile, take different routes. The parts receive instructions from these signals. The PCB ensures that everything is carried out in a methodical and regulated manner. The electrical flow control system is extremely well-organized. This organization makes it possible to produce high-tech electronic devices that are reliable and reasonably priced.

What Components Make Up a PCB?

Despite appearing to be a single unit, a PCB is actually composed of multiple layers that are pressed together. Every layer serves a distinct function. Gaining an understanding of these layers aids in comprehending the entire board.

The substrate is the initial layer. This is the PCB’s main body. It is the base material, which can be either flexible or rigid. FR-4 is the most widely used material for rigid PCBs. FR-4 is a good electrical insulator, strong, and flame-retardant. The structure of the entire board is provided by this substrate. The substrate’s thickness can change based on the device’s requirements.

The copper layer comes next. The substrate is covered with a thin layer of copper foil. Copper is applied to one side of a single-sided PCB. Copper is applied to both sides of a double-sided PCB. Multiple copper layers are divided by substrate layers in multi-layer printed circuit boards. Only the desired traces and pads remain after unwanted copper is etched away to create the electrical circuit.

The solder mask layer sits on top of the copper layer. The PCB’s distinctive green hue comes from this layer. Other colors, such as red, blue, or black, may also be used. The polymer coating is the solder mask. Its primary function is to stop solder bridges and shield the copper traces from oxidation. Solder

Above the copper layer is the solder mask layer. This is the layer that gives the PCB its characteristic green color. It can also be other colors like blue, red, or black. The solder mask is a polymer coating. Its main job is to protect the copper traces from oxidation and to prevent solder bridges. Solder bridges are accidental connections between two points that should not be connected. The solder mask covers the entire board except for the small pads where components will be soldered.

The silkscreen is the last layer. Over the solder mask, the silkscreen is printed. Usually written in white ink, it includes symbols and text. The components on the board are identified by these markings. Labels such as “R1” for a resistor or “C1” for a capacitor, for instance, may be visible. Engineers benefit from the silkscreen when assembling and troubleshooting. It serves as a map, indicating the proper location of each component. Together, these four layers form a printed circuit board that is both complete and functional.

What Kinds of PCBs Are There?

PCBs come in many different forms. The type of PCB used depends on the requirements of the application. The main ways to classify PCBs are by their number of layers and by their rigidity.

Classification by layers is very common. The simplest type is the single-sided PCB. This board has all its components and copper traces on only one side of the substrate. These PCBs are easy to design and manufacture. They are also the least expensive. They are typically used in simple electronic devices like calculators or garage door openers where the circuit is not very complex.

A double-sided PCB has copper traces on both sides of the substrate. This allows for more complex circuits to be built on a board of the same size. Holes called “vias” are drilled through the board. These vias are plated with copper. They create electrical connections between the circuits on the top and bottom layers. Double-sided PCBs are found in a wide range of devices, including power supplies and industrial control systems.

PCB Type

Multi-layer PCBs are the most complex. They consist of three or more copper layers. Each layer is separated by a layer of insulating material. The layers are laminated together under high temperature and pressure. This creates a very dense and compact circuit board. Multi-layer PCBs are essential for sophisticated electronics like smartphones, laptops, and medical equipment. The internal layers are used for power and ground planes, which improves signal quality and reduces electronic noise.

Another crucial distinction is classification based on rigidity. A PCB that is incapable of being bent or twisted is said to be rigid. A solid substance, such as FR-4, is used to make the substrate. Because rigid PCBs give components exceptional strength and durability, they are used in the majority of electronic devices. An ideal illustration of a rigid PCB is a computer motherboard.

A flexible PCB, also known as a flex circuit, is built on a flexible substrate material. This material is typically a high-temperature plastic film like polyimide. Flexible PCBs can be bent, folded, or shaped to fit into small or irregularly shaped spaces. They are used in applications where space is limited or where the circuit needs to move, such as in cameras, wearable devices, and automotive electronics.

Both rigid and flexible board technologies are combined in a rigid-flex PCB. The board has two parts: a flexible part and a rigid part. This makes a three-dimensional design possible. Connectors and cables between rigid sections are not necessary with rigid-flex boards. This lowers weight and increases dependability. They are employed in high-performance applications where space and performance are crucial, such as military and aerospace equipment.

The PCB Design and Manufacturing Process

There are two steps involved in creating a PCB. The first step is design. The second stage is manufacturing. Both stages require precision and specialized tools.

The design process begins with a schematic. An engineer uses specialized software called CAD (Computer-Aided Design) software to create a circuit diagram. The schematic shows all of the necessary components and their logical relationships. It acts as a blueprint for how the circuit should function even though it does not show the physical layout.

Next, the designer creates the physical layout of the board. This is done in the same CAD software. The designer places digital footprints of each component onto a virtual board. A footprint is the pattern of pads to which a component’s leads will be soldered. The designer must consider many factors during this stage. These factors include the physical size of the components, the heat they generate, and the path of the electrical signals.

After placing the components, the designer performs routing. Routing is the process of drawing the copper traces that connect the components. This must be done according to the connections defined in the schematic. On a complex board, routing can be like solving a puzzle. The designer must find paths for thousands of traces without letting them cross or interfere with each other.

Once the layout and routing are complete, the designer runs a Design Rule Check (DRC). The software checks the design against a set of rules provided by the manufacturer. This ensures that the design can actually be built. For example, it checks if the traces are too close together or if the holes are too small.

Lastly, a collection of files known as Gerber files are produced by the design program. All of the information required for manufacturing is contained in these files. A single PCB layer, such as the top and bottom copper layers, the solder mask, or the silkscreen, is described in each file.

The manufacturing process starts when the factory receives the Gerber files. First, the substrate material is cut to the required size. Then, a machine drills holes through the board for components and vias. These holes are drilled with extreme precision based on the design files.

Next, the copper traces are created. A layer of light-sensitive material called photoresist is applied to the copper-clad board. The Gerber file pattern for the copper layer is then projected onto the board using UV light. The light hardens the photoresist in the areas that will become the traces. The board is then placed in a chemical solution that etches away the unhardened photoresist and the exposed copper. This leaves behind the desired copper circuit pattern.

After etching, the other layers are applied. The solder mask is applied over the copper traces. Then, the silkscreen markings are printed onto the board. A surface finish is applied to the exposed copper pads. This finish protects the copper from corrosion and makes it easier to solder the components.

Testing is the last phase. Electrical testing is performed on each manufactured PCB. To ensure there are no open circuits or short circuits, a machine equipped with probes examines each connection on the board. Only boards that successfully complete this test are sent to the client so that the components can be assembled. This entire process turns a digital design into a physical and functional board.

Where Are PCBs Used?

PCBs are present in nearly every electronic product in the modern world. Their applications span across all industries and aspects of daily life.

PCBs are most commonly used in consumer electronics. The main board of every laptop, tablet, and smartphone is a very dense multi-layer PCB. PCBs are necessary for the operation of smart home appliances, digital cameras, gaming consoles, and televisions. Innovation in PCB technology is driven by the ongoing need for consumer devices that are more compact and powerful.

Another important area is computers and office supplies. A desktop computer’s motherboard is a sizable, intricate PCB that links the memory, processor, and every other peripheral. Hard drives, network cards, and graphics cards all have separate PCBs. Printed circuit boards are used to control the functions of office equipment such as printers, scanners, and routers.

The automotive industry is a rapidly growing user of PCBs. Modern cars contain dozens of electronic control units (ECUs). These ECUs manage everything from the engine and transmission to the safety systems and in-car entertainment. The increasing use of advanced driver-assistance systems (ADAS) and the move toward electric vehicles are creating a demand for more powerful and reliable automotive-grade PCBs.

Industrial applications also depend heavily on PCBs. Manufacturing plants use PCBs in their control systems, robotics, and power distribution equipment. Industrial PCBs are often designed to be very robust. They must withstand harsh conditions like high temperatures, vibration, and chemical exposure.

The medical field uses highly specialized PCBs. Medical devices must be extremely reliable. PCBs are used in diagnostic equipment like MRI and CT scanners, monitoring systems like heart monitors, and implantable devices like pacemakers. These applications often require rigid-flex PCBs to fit inside the human body or within compact medical instruments.

The best performance and dependability are required for military and aerospace applications. PCBs utilized in defense systems, satellites, and aircraft must operate flawlessly in harsh environmental circumstances. These PCBs are constructed using cutting-edge materials and put through a rigorous testing process to make sure they can survive radiation, temperature changes, and strong G-forces. They stand for the pinnacle of PCB technology. PCBs’ importance to our technological society is demonstrated by their inclusion in these vital systems.

Conclusion

Although the printed circuit board is a straightforward idea, it is a crucial and potent technology. It gives the parts that run our world their structural support and electrical channels. PCBs are made to satisfy a wide range of requirements, from straightforward single-sided boards to intricate multi-layer rigid-flex boards. They are the unseen workhorses that power our computers, phones, and vehicles. A PCB’s intricate and exact design and manufacturing process transforms an intangible concept into a physical item with electrical control capabilities. The PCB will continue to change as advancements in technology, becoming faster, denser, and more ingrained in our daily lives. To comprehend the technology that defines our era, one must have a basic understanding of the PCB.
