Understanding What Makes Up PCB Assembly Cost

Estimated reading time: 11 minutes

When calculating PCB assembly cost, you need to consider several key factors:

• Material costs, including circuit board electronic components, solder paste, and the PCB base
• Service and labor costs, such as setup, component placement, soldering, and testing
• Tooling and packaging expenses

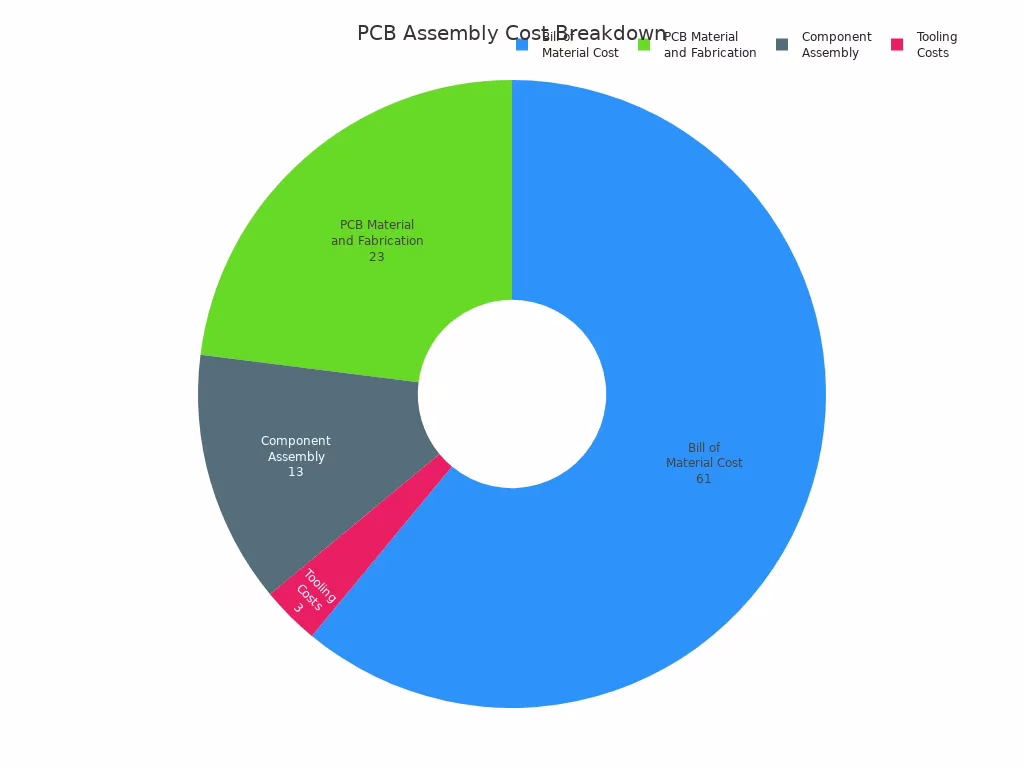

The table below outlines the typical contribution of each cost component to the overall price:

Cost Component	Typical Percentage of Total Cost
Bill of Material Cost	61%
PCB Material and Fabrication	23%
Component Assembly	13%
Tooling Costs	3%

Understanding these details is essential when working on your Memory module or the A3F8GH40BBF-KD project. By aligning your PCB Capabilities with your budget, you can avoid unexpected expenses and ensure efficient production of your circuit board electronic components.

Key Takeaways

PCB assembly cost is mostly about materials, labor, setup fees, tooling, and testing. If you order more boards, each board costs less. This is because setup and labor fees are shared. Using machines to assemble boards lowers labor costs. It also makes boards faster. Simple designs with common parts help save money. Planning early stops extra fees and delays. Talking clearly with your assembler helps a lot. Good files make the boards better and cheaper.

Cost Components

Setup Fees

Setup fees are also called tooling or engineering charges. These fees pay for getting your order ready. They cover things like making solder masks and programming machines. You pay this fee once for each design. It does not matter how many boards you order. For small orders, setup fees are a big part of the total cost. If you order more boards, the cost for each board goes down.

Fee Type	Typical Cost Range	Applicability / Notes
Engineering Fees	$300 to $1000	Mainly for orders below 2000 units; covers setup and preparation
Stencil Costs	$50 to $100	Cost for stencil production; depends on complexity
Per-unit Impact	Decreases with larger orders	Fixed setup fees spread over more units

• Small orders have higher setup and engineering fees per board.
• When you make lots of boards, these fees are less important.
• Using machines helps lower the cost for each board.

Labor

Labor is a big part of PCB assembly cost. The price changes based on where the assembler is, worker skill, and how much is done by machines. In North America, labor costs more because of higher pay and strict rules. In China and Asia, labor is cheaper, but shipping takes longer and talking to the factory can be harder.

Factor	US (North America)	China (South Asia)	Europe (Western Europe)
Labor Cost	Higher due to higher wages and overheads.	Lower due to lower labor costs and scale.	Moderate, varies by country.
Lead Time	Often faster for small volumes and prototypes.	Longer shipping times, especially for bulk orders.	Moderate lead times balancing cost and speed.
Quality	Typically very high with strict controls.	Variable but improving; requires careful vendor selection.	Generally good, adheres to European standards.
Communication & Support	Easier communication, aligned time zones.	Potential language and cultural barriers.	Good communication, fewer cultural barriers than China.
Intellectual Property	Strong protection laws and enforcement.	IP protection concerns exist; requires trust and contracts.	Moderate to strong IP protection.
Flexibility	More flexible for small runs and design changes.	Less flexible, suited for large standardized runs.	Fairly flexible for various production needs.

Labor costs also change if more work is done by machines. Manual assembly needs more skilled workers and takes longer. This makes each board cost more. Fully automated lines use machines to place and solder parts. This lowers labor costs and makes boards faster.

Automation Level	Initial Setup Cost	Labor Costs	Production Speed	Error Rate	Flexibility
Manual	Low	High	Low	High	High
Semi-Automated	Moderate	Moderate	Moderate	Moderate	Moderate
Fully Automated	High	Low	High	Low	Low

Stencil and Tooling

Stencil and tooling costs are paid one time for each design. Stencils help put solder paste on your boards. Tooling means molds and fixtures that help with assembly. These costs are usually $100 to $500 for each batch. If you order only a few boards, each board costs more. If you order a lot, the cost per board goes down.

Cost Item	Typical Cost Range	Notes on Volume Scaling
Stencils	$50 – $200	One-time cost unless frameless universal system
Setup Charges	$100 – $500	Fixed per batch, independent of quantity

• Making just a few boards costs more for each one.
• Making more boards lowers the cost for each board.
• You can sometimes put several designs on one panel to save money.

Assembly Methods (SMT, THT, Soldering)

How your assembler puts parts on your board changes the cost and quality. The main ways are Surface Mount Technology (SMT), Through-Hole Technology (THT), and manual soldering.

Aspect	SMT (Surface Mount Technology)	THT (Through-Hole Technology)
Equipment & Setup Cost	Higher upfront costs due to advanced machinery like pick-and-place and reflow ovens; requires stencil creation and programming.	Lower upfront costs with simpler wave soldering or manual soldering stations; less complex equipment needed.
Labor Cost	Lower per-unit labor cost in high-volume production due to automation; requires skilled technicians for setup and maintenance.	Higher labor cost per unit because of manual or semi-automated insertion and soldering; slower throughput.
Component Size & Density	Supports miniaturized, high-density components, enabling smaller PCBs and complex designs.	Uses larger components with bigger footprints, limiting miniaturization and increasing board size.
Production Volume Suitability	Cost-effective for large volume manufacturing due to automation and speed.	More cost-effective for low to medium volumes and prototyping due to simpler setup and manual processes.
Rework & Repair	More difficult and costly to rework due to small component size and soldering method.	Easier to rework and repair because of larger components and manual soldering accessibility.
Mechanical Strength	Less robust mechanical connections; sensitive to mechanical stress.	Stronger mechanical bonds due to component leads through holes, better for power-intensive or harsh environments.

• Manual assembly and THT need more human work, so they cost more.
• SMT is best for making lots of boards because machines work fast and accurately.

Testing and Inspection

Testing and inspection make sure your boards work right. These steps add to the PCB assembly cost, but they help find problems early. Common tests are visual checks, AOI, X-ray for hidden joints, and in-circuit testing (ICT).

• Visual and size checks
• Microsection analysis
• Chemical and physical tests
• Electrical tests like continuity and isolation
• Flying probe testing
• Hi Pot testing for high voltage
• AOI after soldering
• X-ray for hidden solder joints
• Functional testing

In-circuit testing is the most advanced and accurate test. It uses a special fixture to check every part and connection. ICT setup can cost $10,000 or more, but it checks almost everything. For most projects, testing and inspection cost from a few hundred to several thousand dollars, depending on how hard and how many boards you have.

Packaging and Shipping

Packaging and shipping keep your boards safe and get them to you. These costs depend on board size, weight, packaging type, and delivery speed.

• Bigger boards need bigger boxes and more protection, so they cost more.
• Rush orders may need air shipping or special handling, which costs extra.
• Shipping costs also include getting materials to the factory and boards to you.
• If you want special packaging or fast shipping, you will pay more.

PCB Assembly Cost Factors

You should know what makes the price go up or down. Some things change PCB assembly cost a lot. If you learn about these, you can make smart choices and save money.

Board Complexity

Boards with more parts or layers cost more to make. Here are some reasons why:

• More layers use extra materials and take more time. For example, a 4-layer board can cost 30-40% more than a 2-layer board.
• Boards with lots of parts need special machines and careful work.
• Tiny or special parts need special tools and skilled workers.
• Hard designs may need extra steps, like special holes or tiny parts.

Order Quantity

How many boards you buy changes the price for each one. Small orders cost more for each board because setup fees and hand work do not spread out. Big orders use machines and bulk buying, so each board costs less.

Order Quantity Range	Per-Unit Cost Impact	Key Cost Drivers
Prototype (1-10 units)	High	High setup costs, material waste, manual handling
Small Batch (10-100 units)	Medium to High	Reduced setup costs, some automation
Medium Batch (100-1000 units)	Medium	Optimized setup, semi-automated process
Large Batch (1000+ units)	Low	Automated production, volume discounts

Turnaround Time

If you need your boards fast, you will pay more. Rushing means the factory must hurry, pay overtime, and use faster shipping. This can add 10-33% or more to your total cost. Sometimes, fast jobs cost up to 50% more than normal.

Aspect	Impact on PCB Assembly Pricing
Turnaround time effect	Faster turnaround increases cost by up to 33%
Reason	Prioritizing orders, expedited shipping
Typical surcharge range	10-33% premium for expedited orders

Automation Level

Factories use different amounts of machines. Manual work costs more because people do most of the work. Machines help lower labor costs and make boards faster. If your design works with machines, you will save money.

Cost Optimization

Design for Manufacturability

You can make PCB assembly cost less by using smart design steps.

• Pick PCB materials and layer setups that are easy to make and work well.
• Use normal trace widths and spacing that factories can handle.
• Place parts in the same direction and leave enough space between them.
• Add fiducial marks and test points to help with accuracy and testing.
• Use fewer different parts to make assembly faster and cheaper.
• Talk to your manufacturer early so your design fits their process.

Efficient Sourcing

Smart sourcing helps you save money and avoid waiting.

• Buy in bulk and ask for good prices to get discounts.
• Check with other suppliers to find better deals.
• Pick standard parts that are easy to find and cost less.
• Watch for parts that may go away soon and plan ahead.
• Use inventory tools to stop shortages or having too many parts.

A strong supply chain keeps your project on time and costs low.

Reasonable Lead Times

Planning early gives you more choices and better prices.

• Longer lead times let factories plan and skip rush fees.
• Early planning helps with bulk buying and better sourcing.
• Avoid fast services, which cost more for overtime and quick shipping.
• Tell your assembler what you need ahead of time for better rates.

Communication with Assembler

Clear talk with your assembler stops mistakes and surprises.

• Give detailed drawings, BOMs, and clear project timelines.
• Set milestones and check progress often.
• Share all design files and updates quickly.
• Keep feedback open to fix problems early.

Reducing PCB Assembly Cost

You can use many ways to lower your costs:

1. Check part placement for easy soldering and fixing.
2. Follow test guidelines and mark reference points clearly.
3. Use standard board sizes and fewer layers.
4. Put more boards on one panel to save setup and material.
5. Make a good BOM and find backup parts.
6. Use machines for assembly when you can.
7. Inspect bare boards early to find problems.
8. Pick skilled manufacturers who offer flexible prices.
9. Order more boards to spread setup costs and lower each board’s price.

You can control PCB assembly cost better if you know the main things that change the price. The table below shows the most important parts and what makes them cost more or less:

Cost Area	What Impacts Cost Most
Materials	Board size, layers, and type
Assembly Process	Method (SMT or THT), labor, testing
Volume & Lead Time	Order size, rush orders

Always check what your quote covers. Make your designs simple and talk clearly with your assembler. This helps you avoid surprise costs. Plan early and use the tips in this guide so you can make a good budget.
