Print PCB Etching at Home Made Simple in 2025

Estimated reading time: 14 minutes

You can print PCB boards at home with ease in 2025. This process saves money and lets you create custom circuit board electronic components for your projects. You gain hands-on skills while keeping things safe. Always handle chemicals with care and follow safety steps. With patience and clear instructions, you can achieve great results even as a beginner.

Key Takeaways

Collect all needed items like copper-clad boards, primer spray, etching chemicals, and safety gear before you start your PCB project. Use circuit design software and test your circuit on a breadboard. This helps you find mistakes early and saves time and materials. Move your circuit pattern carefully with glossy paper and a laser printer.

Then use heat evenly to make sharp, clear traces. Pick the right etching solution and stir it gently while etching. Watch the board closely so you do not over-etch or get uneven results. Always wear safety gear and work where there is fresh air. Throw away chemicals safely to keep yourself and the environment safe.

Materials

Essential Items

To start etching PCBs at home, you need some main things. Most people use a copper-clad board called FR4. This board has fiberglass under a thin copper layer. You can buy these boards online for cheap. To make your circuit, you remove extra copper with a chemical etchant. Before you etch, you put a resist mask on the copper you want to keep. Many people use flat black primer spray paint as the resist. After spraying, you can use a laser engraver or print a transfer to show your circuit pattern. When you finish etching, you take off the resist with acetone.

Here is a list of essential items:

• Copper-clad FR4 board
• Flat black primer spray paint (as resist)
• Acetone (for cleaning)
• Chemical etchant (such as ferric chloride or a homemade solution)
• Laser printer or laser engraver (for pattern transfer)
• Plastic or glass tray (for etching process)
• Tweezers or tongs (for handling boards)

Tip: Always use plastic or glass containers for etching. Metal containers can react with the chemicals.

Optional Tools

Some tools help make the job easier and give better results. You might want these if you make PCBs a lot.

• Small drill or rotary tool (for making holes)
• Fine sandpaper or steel wool (for cleaning board surface)
• Ruler and utility knife (for cutting boards)
• Multimeter (for testing circuits)
• UV lamp (if using photoresist methods)

Safety Gear

Safety is very important when you use chemicals. You must protect yourself and your workspace.

• Nitrile or latex gloves to keep your hands safe
• Safety goggles or glasses to protect your eyes from splashes
• Face mask so you do not breathe in fumes
• Apron or old clothes to keep your skin and clothes safe
• Work in a place with fresh air or outside
• Use plastic trays or covers to catch any spills
• Keep baking soda close to clean up acid spills

Note: Always put chemicals in labeled containers and follow local rules to throw them away. Wash off any chemicals from your skin right away. Never work alone when using strong chemicals.

Design

Circuit Software

You need to pick the right circuit design software first. Many people in 2025 use programs that help draw circuits and plan layouts. These tools help you spot mistakes before you Print PCB at home. You can see your design on the screen before you start. Here is a table with the most used software and what they offer:

Software	Popularity Among Home PCB Makers	Key Features & Suitability
Eagle	Popular	Integrated schematic and PCB layout, large libraries, works on many systems, links with Fusion 360.
KiCad	Highly popular	Free, open-source, unlimited layers, strong community, good for hobbyists and pros.
EasyEDA	Popular	Cloud-based, connects to suppliers, direct manufacturing, free and paid options.
Altium CircuitMaker	Popular	Free for open-source, pro tools, community sharing, direct manufacturing links.

You can choose any of these based on what you need. KiCad is free and open-source, so many beginners like it. Eagle and EasyEDA are easy to use and have big libraries. Altium CircuitMaker gives pro features if you share your work.

Tip: Try out a few programs to see which one you like best.

Breadboard Testing

You should test your circuit on a breadboard before etching. Breadboards let you build and change circuits without soldering. This step helps you find problems early. Here are some main reasons to use breadboards:

• You can build and change your circuit fast.
• Breadboards save money because you can use them again.
• They help you learn by showing how parts connect.
• You do not need special tools or skills to start.
• You can swap parts to try new ideas.
• Breadboards make it easy to check and fix your circuit.

Testing on a breadboard helps you feel sure your design will work when you Print PCB at home. You do not waste time or materials on a design that does not work.

Print PCB Layout

Play

Transfer Paper

You need the right transfer paper to get a clean and accurate circuit pattern on your copper board. Many makers find that glossy paper works best for this step. Glossy magazine pages, like those from the Economist, help prevent the image from stretching or smudging. The toner from your printer sticks to the glossy surface but releases easily onto the copper when you apply heat. You can also use the plastic-coated backing paper from peel-off stickers. This type of paper lets you peel it off after transferring, which makes the process simple and reduces the risk of damaging your design.

Waxy paper from book contact rolls and adhesive vinyl backing paper also work well. These papers are easy to find and often cost little or nothing. When you use these glossy or waxy papers, you get a higher success rate because they help the toner stick to the copper without breaking or shifting. Magazine paper dissolves in cold water, so you can remove it gently and avoid stress on the toner. This means fewer defects and sharper lines on your Print PCB project.

Tip: Always test a small piece of your chosen paper before starting a full Print PCB layout. This helps you avoid surprises and ensures the best results.

Laser Printing

You need a laser printer for this process. Inkjet printers do not work because their ink does not transfer with heat. Set your printer to the highest quality and darkest setting. Print your circuit layout in mirror image so the toner faces the copper when you transfer it. Place the glossy or waxy paper in the printer’s manual feed tray to avoid jams.

After printing, handle the paper carefully. Try not to touch the toner areas. The toner forms the resist that protects the copper during etching. A clear, dark print gives you sharp traces and fewer problems later. This step is key to making a reliable Print PCB at home.

Board Prep

Cutting

You need to cut your copper-clad board to the right size before you start. Accurate cutting helps your project look neat and fit your design. Follow these steps for the best results:

1. Measure your board with a ruler. Mark the lines where you want to cut using a pencil or permanent marker. Mark both sides for better accuracy.
2. Place the board on a flat, sturdy surface. Put a piece of paper under it to protect your workspace.
3. Score along the marked lines with a sharp utility knife, hacksaw, or rotary tool. Use firm, steady pressure. If you use a utility knife, carve grooves (v-scores) by running the blade several times along the line.
4. Snap or cut the board along the grooves. Fold back the material gently to avoid bending or breaking the board unevenly.
5. Use sandpaper or a file to smooth the edges. This step removes sharp bits and makes the board safer to handle.
6. Always wear safety goggles and gloves. Work in a well-ventilated area to protect yourself from dust and debris.

Tip: A utility knife works well for most home projects. Advanced tools like CNC routers or laser cutters are not needed for simple boards.

Cleaning

Clean your copper-clad board before you transfer your circuit pattern. Oils, dust, and oxidation can stop the toner from sticking. Start by washing the board with soap and water to remove dirt and grease. Dry it with a lint-free cloth. For extra cleaning, use a nylon scouring pad and a powder cleanser like Ajax. Scrub the copper surface until it looks bright and shiny. Rinse the board well with water. Check for a “water break free surface”—water should spread evenly without beading up. This shows the board is ready for the next step. Avoid touching the copper after cleaning to keep it free from oils.

Note: You can also use vinegar and salt if you do not have a commercial cleaner. Do not use harsh acids or ferric chloride for cleaning, as these are unsafe for this step.

Transfer

Toner Method

You use the toner transfer method to move your circuit design onto the copper board. This method works well for many home electronics projects. You print your layout with a laser printer onto glossy or waxy paper. The toner acts as a barrier that protects the copper you want to keep. When you apply heat, the toner sticks to the copper surface.

Many makers like this method because it is simple and does not need expensive equipment. You can make detailed circuit patterns at home. Some people find the process tricky at first. Forum discussions show that results depend on your skill and attention to detail. If you rush or skip steps, you might get broken lines or missing traces. Some users say ironing can give mixed results. Others suggest that professional PCB services are more reliable. Still, many hobbyists report that with practice, you can get great results every time.

Tip: Clean your board well and follow each step closely. This helps you get a sharp and complete transfer.

Heat Application

You need to use heat to transfer the toner from the paper to the copper board. Most people use a household iron or a hot laminator. Set your iron to the highest setting with no steam. Place the printed paper face-down on the copper. Press the iron down firmly and move it slowly over the board for about 2-5 minutes. Make sure you cover all areas evenly.

A hot laminator gives even better results. You feed the board and paper through the laminator several times. This gives steady heat and pressure. The toner melts and sticks to the copper. After heating, let the board cool for a minute. Soak it in water to soften the paper. Gently rub away the paper, leaving the toner on the copper.

Note: Do not rush the heating step. Uneven heat can cause gaps in your circuit lines. With patience and the right tools, you can Print PCB boards at home with high quality.

Etching

Solution Options

You have a few choices for etching solutions for your PCB project. The most used one in 2025 is Ferric Chloride. Many people like it because it works quickly and gives good results. Ferric Chloride can etch a board in just 3 to 10 minutes. The time depends on how you use it and how warm it is. You can use the same solution more than once, but it gets slower as it soaks up more copper.

Another choice is a homemade mix of vinegar, salt, and hydrogen peroxide. This mix is safe and cheap. You can make it with things from your kitchen or store. The vinegar and peroxide mix takes longer to work, about 11 to 20 minutes. It works best if you make a new batch each time. Some people use hydrochloric acid with hydrogen peroxide, but this is more risky and not good for beginners.

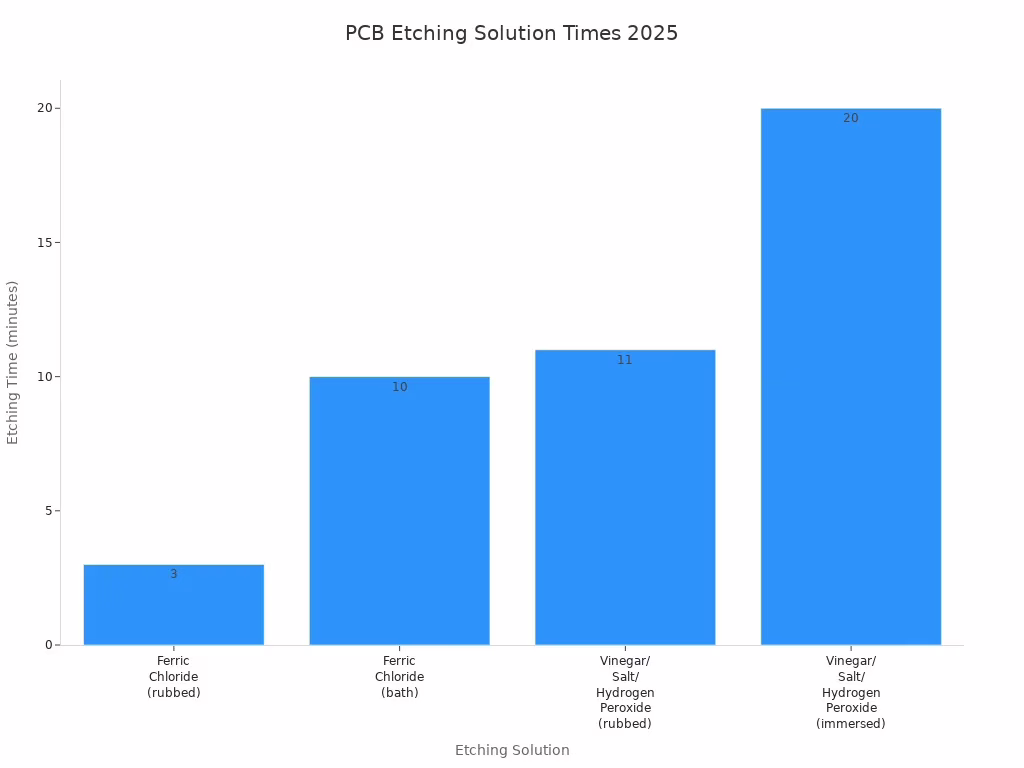

Here is a table that shows the most common etching solutions:

Etching Solution	Etching Time (minutes)	Maximal Resolution	Cost per Liter (USD)	Notes on Safety and Handling
Ferric Chloride (rubbed)	3	0.4 mm	~20	Corrosive, requires gloves, disposal concerns
Ferric Chloride (bath)	10	0.4 mm	~20	Same as above
Vinegar/Salt/Hydrogen Peroxide (rubbed)	11	0.4 mm	<4	Safe, inexpensive, requires fresh preparation
Vinegar/Salt/Hydrogen Peroxide (immersed)	20	0.4 mm	<4	Safe, inexpensive, slower etch

You can see that Ferric Chloride is the fastest and works best. The vinegar and peroxide mix is slower but safer and costs less. Both can give you sharp lines if you follow the steps.

Tip: Always wear gloves and goggles when using any etching solution. Work where there is fresh air so you do not breathe in fumes.

Stirring and Timing

Stirring the etching solution is important for good results. If you stir every 2 to 3 minutes, the chemicals touch all parts of the copper. This keeps the etching even and stops spots from being missed. If you do not stir enough, you might get uneven lines or patches. If you stir too hard, you could mess up the toner mask or move the board.

Use a plastic stick or gently rock the tray to move the solution. Do not use metal tools because they can react with the chemicals. Keep the temperature steady. Warmer solutions work faster. Most acidic solutions, like vinegar and peroxide, need about 20 minutes to finish. Ferric Chloride works faster, sometimes in just 3 to 10 minutes, especially if you keep it warm and stir often.

Note: Check your board every few minutes. When all the extra copper is gone, take out the board right away so you do not over-etch.

Here are some easy steps for the best results:

• Stir or move the solution gently every 2-3 minutes.
• Keep the temperature between 25°C and 40°C (77°F to 104°F) for faster etching.
• Watch the board closely so you do not over-etch.
• Rinse the board with water as soon as you finish etching.

Alert: Never leave the etching process alone. Always wear your safety gear and follow the safety rules.

By picking the right solution and stirring at the right times, you can make sharp, professional-looking PCBs at home.

Cleaning

Rinsing

After you finish etching your PCB, you need to rinse it well. Rinsing removes leftover chemicals that can damage your board or cause problems later. You should always use deionized or distilled water for this step. Tap water contains minerals that can leave deposits or cause corrosion.

Follow these steps for the best results:

1. Place your PCB in a container filled with high-purity deionized water.
2. Move the board gently to help wash away all the etching solution.
3. Repeat the rinse at least once more. Two or more rinse cycles work best, especially if your board has small holes or tight spaces.
4. Check the water’s purity if you can. Clean water should have a conductivity below 10 microsiemens per centimeter.
5. Dry your PCB completely before you touch it or move to the next step. Use a lint-free cloth or let it air dry in a dust-free area.

Tip: Never use just one rinse. Multiple rinses make sure you remove all chemical residues and prevent cross-contamination.

Toner Removal

Once your board is dry, you need to remove the toner that protected your copper traces. Several solvents work well for this job. Acetone is the most common choice. You can soak your PCB in acetone for a few minutes to dissolve the toner. Paint thinner and commercial products like GOOF OFF also work, especially if your toner does not come off with acetone. Turpentine and methylated spirits can remove toner quickly without much rubbing.

• Acetone: Soak the board, then wipe gently with a soft cloth.
• Paint thinner: Use if acetone does not work, especially for some toner brands.
• GOOF OFF: Apply with a cotton swab for stubborn spots.
• Turpentine or methylated spirits: Use for quick cleaning.

Always wear gloves and goggles when handling these solvents. Work in a well-ventilated area or outside. After removing the toner, rinse your PCB again with deionized water to wash away any leftover solvent.

Note: Avoid using steel wool or rough pads, as they can scratch your copper traces. Choose a solvent that matches your toner type for the best results.

Inspection

Trace Check

You need to check your PCB traces before you move to the next step. Careful inspection helps you find problems early. Good lighting and a magnifying glass make this job easier. You can spot tiny cracks, broken lines, or solder bridges that might cause trouble later.

Here is a simple way to inspect your PCB:

1. Use a magnifying glass or microscope to look at all the traces and solder joints. Move slowly and scan the board in rows.
2. Check for solder bridges. These are small blobs of solder that connect two traces by mistake.
3. Look for cracks or gaps in the copper traces. Even a small break can stop your circuit from working.
4. Compare your board to the printed schematic or assembly drawing. Make sure every trace matches the design.
5. Inspect the placement and orientation of each component. Polarized parts like diodes and capacitors must face the right way.
6. Check for any dirt, dust, or foreign objects on the board. Clean these off to prevent shorts.

Tip: Manual inspection works best for home projects and prototypes. Automated Optical Inspection (AOI) is used in factories, but you do not need it for small batches.
