Printed Circuit Boards (PCBs) are the backbone of modern electronics. Whether in a smartphone, a medical ventilator, or an automotive control unit, the PCB is responsible for mechanically supporting and electrically connecting electronic components.
For engineers and procurement specialists, understanding the PCB structure is critical. A well-designed stack-up ensures signal integrity, thermal management, and manufacturability. This guide breaks down exactly how a PCB is constructed, the materials used, and the industrial process behind it.

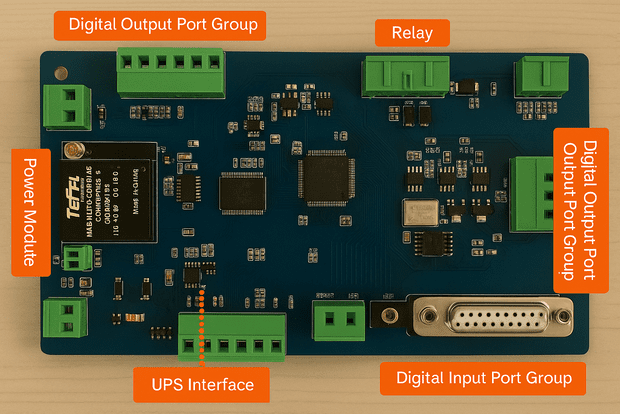

What Is a PCB?
A PCB is a sandwich of different materials laminated together. While a board can have anywhere from one to over 50 layers, the basic PCB structure always consists of four key materials.
Think of it like a lasagna. Here is the breakdown from the bottom up:
Substrate (The Core)
The substrate is the skeleton of the PCB. It gives the board its shape and physical strength.
- Material: The most common material is FR-4 (Flame Retardant type 4), which is a fiberglass-reinforced epoxy laminate. It is rigid and durable.
- Flexibility: For flexible PCBs (Flex Circuits), the substrate is made of Polyimide (PI). This allows the board to bend and fold into tight spaces, which is essential for wearables and compact devices.
Copper Layer (The Conductor)
On top of the substrate, we laminate a thin foil of copper.
- Function: This acts as the “wires” of the board. The etched copper lines are called traces.
- Thickness: Copper thickness is measured in ounces (oz). Most standard boards use 1 oz copper (35µm). High-power PCBs may use 2 oz or 3 oz copper to handle more current without overheating.
Solder Mask (The Skin)
This is the layer that gives the PCB its color (usually green, but also black, blue, or red).
- Function: It insulates the copper traces to prevent accidental contact with other metal parts, which could cause short circuits. It also protects the copper from oxidation.
- Importance: A high-quality solder mask is vital for assembly, preventing solder bridges between closely spaced pads.
Silkscreen (The Labels)
The final layer is the white ink text printed on top.
Function: It indicates component placement (e.g., “R1” for Resistor 1, “C1” for Capacitor 1) and branding logos. This is crucial for the assembly (PCBA) and troubleshooting stages.
Rigid vs. Flexible vs. Rigid-Flex: Choosing the Right Structure
Not all PCBs are flat and hard. Depending on the application, the structure changes:
- Rigid PCB: The standard solid board used in motherboards and towers. It is cost-effective and strong but cannot bend.
- Flexible PCB (Flex Circuit): Built on Polyimide film. These are used in dynamic applications like printer heads or folding smartphones. They save weight and space.
- Rigid-Flex PCB: This is a hybrid structure. It combines rigid sections (for mounting heavy components) with flexible sections (to connect boards without wires). This is common in aerospace and military grade electronics due to its high reliability.
The Industrial PCB Manufacturing Process
Unlike hobbyist methods, industrial PCB manufacturing is a high-precision chemical and mechanical process. Here is how raw materials turn into a finished board:
Step 1: Patterning (Etching)
We start with a copper-clad laminate. A photosensitive film is applied to the copper. UV light hardens the film over the trace pattern. The board is then dipped in an alkaline solution to etch (dissolve) away the unwanted copper, leaving only the circuit design.
Step 2: Lamination (For Multilayer Boards)
For boards with more than two layers, we stack layers of copper foil and “Prepreg” (partially cured epoxy resin) together. A massive press applies heat and pressure to bond them into a single, solid board.
Step 3: Drilling
Computer-controlled CNC machines drill tiny holes in the board. These holes serve two purposes: mounting holes for components and Vias (Vertical Interconnect Access) to connect different copper layers electrically.
Step 4: Plating
The drilled holes are non-conductive fiberglass. To make them conduct electricity, we deposit a thin layer of copper inside the holes. This creates Plated Through Holes (PTH).
Step 5: Solder Mask and Silkscreen
Liquid Photoimageable Solder Mask (LPSM) is applied and cured. Then, the component labels are printed using an inkjet printer or screen printing process.
Step 6: Surface Finish
Exposed copper will rust (oxidize). We apply a finish to protect it and help solder stick. Common finishes include HASL (Hot Air Solder Leveling) and ENIG (Electroless Nickel Immersion Gold).
5 Design Tips for Engineering Success
If you are designing a PCB for manufacturing (DFM), follow these rules to ensure quality and reduce costs:
Optimize the Stack-up: For complex circuits, plan your ground and power planes early. A 4-layer board (Signal – Ground – Power – Signal) offers much better signal integrity than a 2-layer board.
Thermal Management: If you are using high-power chips, place thermal vias underneath them. These small holes transfer heat from the component to the internal ground planes, acting like a radiator.
Trace Width Matters: Do not guess the trace width. Use a calculator. Power lines must be wider to carry current; signal lines can be thinner.
Flex Considerations: For flexible PCB designs, avoid 90-degree corners in your traces. Use curved traces to prevent stress cracks when the board bends.
Keep it Standard: Unless necessary, stick to standard specs (1.6mm thickness, green solder mask, 1oz copper). Custom specs increase lead time and cost.
Conclusion
The PCB structure is more than just layers of material; it is the foundation of electronic reliability. From the robust FR-4 substrate to the protective solder mask, every layer has a purpose.
Whether you are building a simple consumer device or a complex aerospace system, choosing the right structure—Rigid, Flex, or Rigid-Flex—is the first step to success.
FAQ
The industry standard thickness is 1.6mm (0.063 inches). However, boards can be made as thin as 0.4mm for compact devices or as thick as 3.0mm for high-power applications.
The green color comes from the solder mask oil. Green is the standard because it has the best chemical properties, is the easiest for optical inspection machines to scan, and is the most cost-effective.
FR4 is woven glass epoxy, which is strong and heat resistant. CEM-1 is a cheaper composite paper material, often used in low-cost, single-sided PCBs (like in remote controls). FR4 is the standard for professional electronics.
