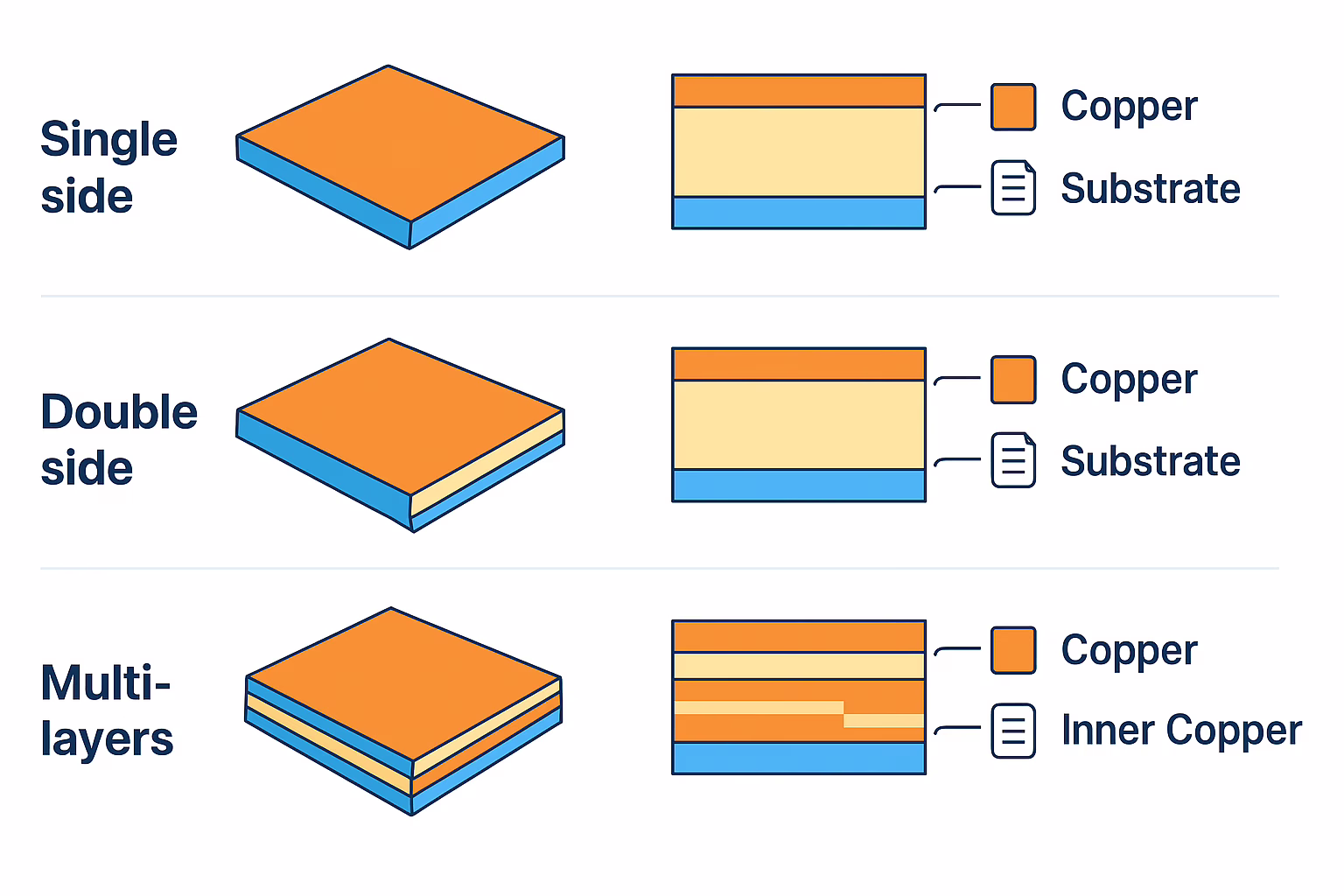

What are PCB Materials?
Printed Circuit Boards are made using different materials. Each material has its own use. It affects how the board works, how strong it is, and how well it handles heat.
Material customization
We offer professional services that can meet customers’ needs for many kinds of material customization.
Copper Thickness
Copper forms the paths that carry electricity across the PCB. When the copper is thicker, it can handle more current.
For example, some special boards use 30 ounces of copper or even more. This works well in high-power designs because it improves current flow.
Epoxy Filled Vias
Some PCBs have holes filled with epoxy. These are used when the board needs a flat top or more strength. The epoxy keeps out air and water. It also makes the board strong when it gets hot or pressed.
FR4
FR4 is the most common material used in PCBs. This material combines fiberglass and epoxy, which makes it both strong and affordable. Because of these qualities, it works well for many applications.
Polyimide
Polyimide works well when the board needs to handle high heat. This material is strong and flexible, so it suits many tough jobs. It also costs more than FR4, but it performs better in harsh conditions.
Rogers
Rogers performs well when the board needs to work at high frequency. It offers low signal loss, so it is a good choice for RF designs. Rogers also costs more than FR4, but it gives better performance in these cases.
Aluminum
Aluminum works well in boards that need to remove heat quickly. It has a metal base, so it pulls heat away from the components.
Because of this, these boards are often used in LED lights and power tools. Aluminum also makes the board strong and helps keep it cool.
How to Choose the Best PCB Material
Choosing the right PCB material is important. You need to understand the material properties to make a good choice. These properties can be divided into four categories: electrical, thermal, mechanical, and chemical.
Key PCB Material Properties
| Property Type | Parameter | Description |
|---|---|---|
| Thermal | Coefficient of Thermal Expansion (CTE) | How much the material expands when heated. |
| Thermal | Decomposition Temperature (Td) | The temperature at which the material starts to break down. |
| Thermal | Glass Transition Temperature (Tg) | Above this temperature, the material may not return to its original state. |
| Electrical | Dissipation Factor (Df) | How quickly the material loses energy. |
| Electrical | Dielectric Constant (Dk) | How stable the material’s impedance is across different frequencies. |
| Electrical | Electrical Strength | The material’s resistance to breakdown in the vertical direction. |
| Electrical | Volume Resistivity (ρρ) | The material’s resistance to electrical flow. |
| Electrical | Surface Resistivity (ρSρS) | The resistance along the material’s surface. |
| Mechanical | Tensile Strength | How much pulling or pushing force the material can handle before breaking. |
| Mechanical | Flexural Strength | The material’s ability to resist bending. |
| Mechanical | Peel Strength | How well the copper layer sticks to the base material under heat or chemicals. |
| Chemical | Moisture Absorption | The material’s ability to resist absorbing liquids. |
| Chemical | Methylene Chloride Absorption (MCA) | The material’s resistance to absorbing methylene |
How to Select the Right Material
First, identify your design requirements. Then, check the table to find a material that meets those needs. For example:
- High-frequency circuits need materials with a low dielectric constant.
- High-temperature environments require materials with a high decomposition temperature.
Finally, test the material to make sure it works as expected. This ensures reliability in your final product.
