Core Manufacturing Services
Flexible manufacturing solutions tailored to your product lifecycle. From initial prototyping to mass production, our automated lines handle complex builds.
- IPC-A-610 Class 2 & 3 Compliant
- ESD Controlled Environment
- Full Traceability
It uses a high-speed pick-and-place line for scalable manufacturing, has been optimized for efficiency and cost reduction, and can produce more than 10,000 units.
High-speed pick-and-place lines that are optimized for efficiency and cost reduction enable scalable manufacturing for more than 10,000 units.
Mixed-technology board assembly lines, both automated and manual. selective soldering and wave soldering.
Additional Manufacturing Services
Prototype & Low-Volume PCB Assembly
- Dedicated NPI (New Product Introduction) lines
- Free DFM check before production
- Quick-turn component sourcing
Turnkey PCB Assembly (Full & Partial)
- Full Turnkey: We source PCBs, components, and manage assembly.
- Partial/Kitted: You supply critical parts; we source the rest.
Surface Mount Technology (SMT)
- Components: 01005 to 100mm connectors
- Capacity: 2M+ components per day
- Nitrogen reflow available
From prototype to mass production, your trusted production partner

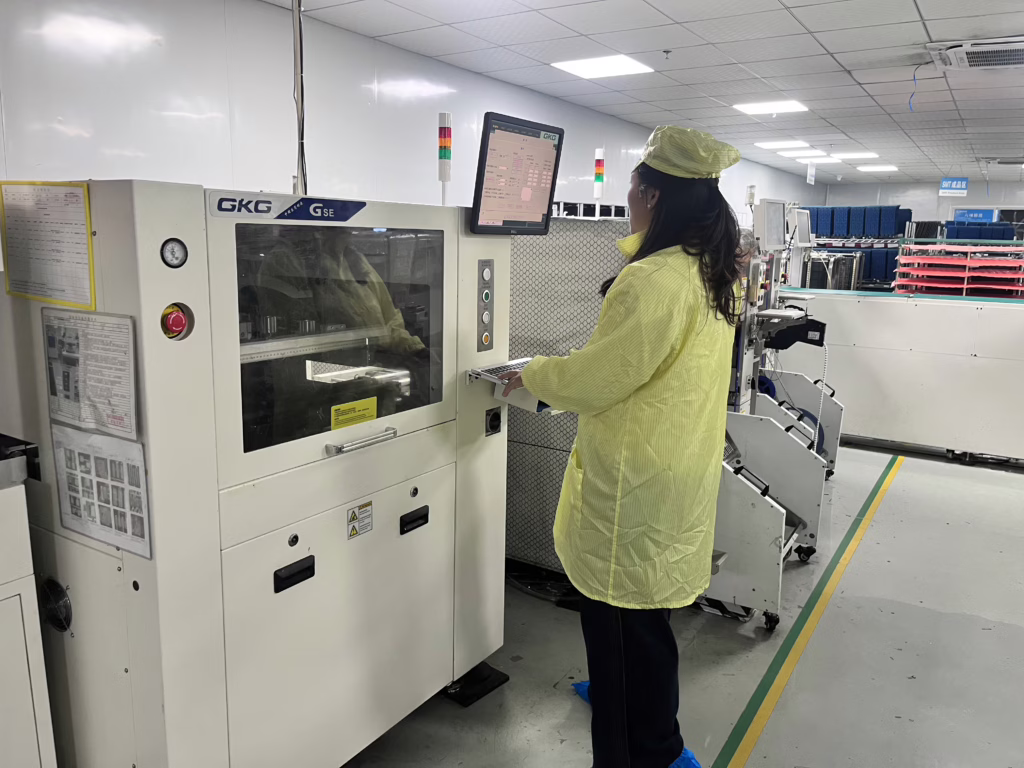

PCBINQ is your internal production partner, and we will turn your design into a physical product by providing complete services.Our experienced staff handles whole-life-cycle and resolves complicated issues so you don’t have to. Provides end-to-end support, managing everything from global logistics to complex engineering challenges.
From low volume prototypes to mass/ high volume production we have the equipment to produce the highest quality components possible.
Quality is Our Number One Priority We believe that precision and accuracy should always be maintained as part of quality control. For example, we use laser cutting to create stainless steels that are used on all applications to ensure perfect application of solder paste onto each PCB.
In addition, we conduct multiple types of quality inspection procedures to ensure that every board produced meets IPC Class2/3 standards prior to leaving our facility.
Addressing the “Price Gap” Issue: PCBINQ was developed as a solution to one of the largest pain points of the electronics manufacturing industry, which is the difference between the initial quote and the final invoice. We promise to deliver the following value to our customers:
- Transparent Pricing For Assembly: No more second-guessing what you will pay for your products. Our company gives you a complete breakdown of cost, including all-inclusive pricing. You won’t find hidden fees, such as inbound material costs or setup costs, that would add to your overall cost of manufacturing small-batch prototypes.
- Strategic Component Sourcing: We will not make you purchase excess inventory to cover attrition. You will only pay for parts used in production of your PCBA and not parts that were scrapped.
- Proactive Engineering (DFM): We value your time as much as you do; therefore, our engineers will complete a full pre-production review of every job to identify any issues before they occur. We will bridge the gap of time zone differences and communication issues and resolve potential delays before they arise.
Technical Specifications
Detailed engineering constraints for standard and advanced builds.
PCB Fabrication
PCBINQ offers One-Stop Solution for PCB & Prototype Assembly and specializes in PCB Prototype and small run services. providing high-tech low-cost PCB / multilayer boards with up to 14 layers.
- PCBs with up to 40 layers
- Min hole size: 0.15mm
- Laser Direct Imaging (LDI)
- Half-cut/Castellated Holes
- Blind, Buried and Plugged Vias
- Via in pad technology
- 100% Electrical Testing
- High Density Interconnect (HDI)
- Special colors & lacquers
- Edge Plating
- Custom Stackup
- Min track/spacing 3mil/3mil
- High-Temp, FR4, Flex, Rogers
- Lead-Free compliant PCBs
- Impedance control
PCB Assembly Services
Our assembly division handles everything from quick-turn prototypes to mass production. We utilize state-of-the-art Fuji and Yamaha SMT lines to ensure precision and speed.
- SMT & Thru-hole assembly
- 0201 / 01005 component capability
- BGA assembly (0.25mm pitch)
- X-Ray & AOI Inspection
- Conformal Coating
- Box Build Assembly
- Firmware Programming
- Functional Circuit Testing
- Cable & Harness Assembly
- Low Volume & High Mix
- No Minimum Order Quantity
- Stencil Fabrication
Parts Management & Sourcing
We have established strong partnerships with authorized distributors like Digi-Key, Mouser, and Arrow to ensure 100% original components for your projects.
- Global Sourcing Network
- BOM Scrubbing & Validation
- Obsolete Part Management
- Full Turnkey Service
- Partial Turnkey / Kitted
- Inventory Management
- Alternative Part Suggestion
- Cost Reduction Analysis
- Incoming Quality Control (IQC)
Functional Testing & QC
Quality is our top priority. Every board undergoes a rigorous multi-stage inspection process before it leaves our facility to ensure zero defects.
- Visual Inspection
- Automated Optical Inspection (AOI)
- X-Ray Inspection (for BGA/QFN)
- In-Circuit Testing (ICT)
- Flying Probe Testing
- Functional Testing (FCT)
- Aging / Burn-in Testing
- Impedance Testing
- Solderability Testing
