OEM PCB assembly is a manufacturing service where a specialized partner builds electronic circuit boards using your specific design files. In this model, you own the brand and the intellectual property, while the factory handles the procurement of components, soldering, and quality inspection. This allows companies to bring products to market without investing millions of dollars in their own equipment.
How SMT Really Works
Most people think OEM PCB assembly is just soldering parts onto a board. But the reality is much more complex. The modern process relies on Surface Mount Technology (SMT). This process must be perfect. If it is not, your product will fail.

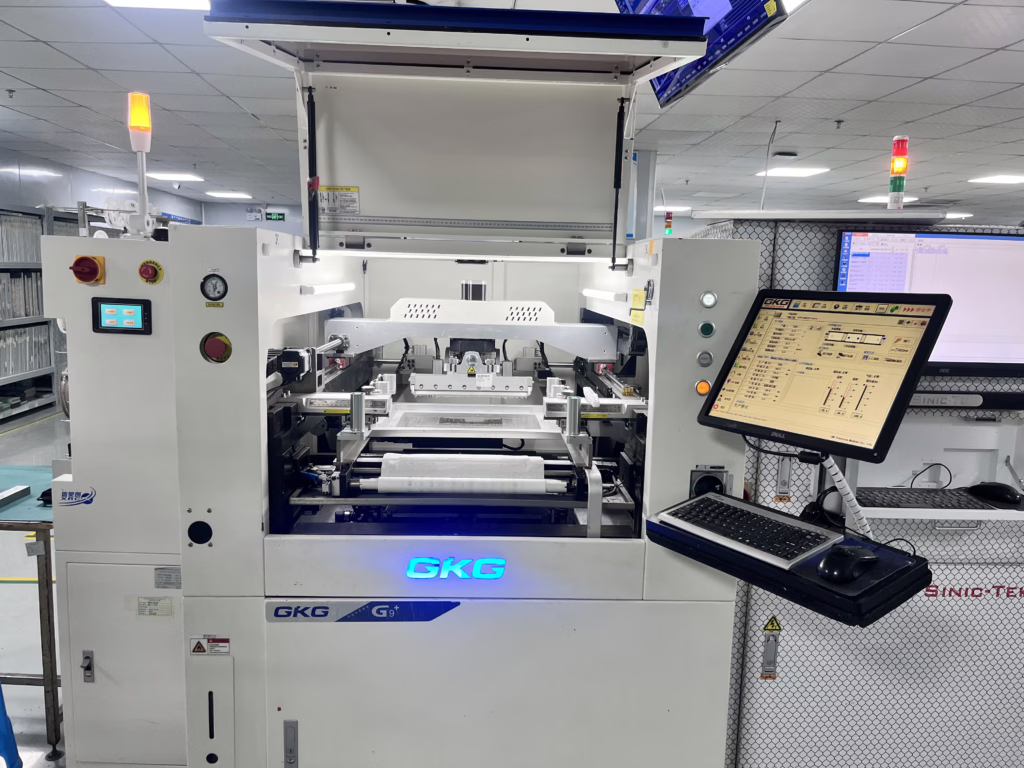

Solder Paste Printing: The Critical First Step
This is the most important part of the process. Industry data shows that 70% of assembly defects happen here. The factory uses a metal sheet called a stencil. A machine pushes gray solder paste through holes in the stencil onto the bare PCB.
But here is the technical detail you need to know. The thickness of the stencil controls the volume of paste.
Too much paste: You get “solder bridges.” This connects two pads that should not be connected. It causes a short circuit.
Too little paste: You get “insufficient wetting.” The part might fall off later.
Pro Tip: Ask your OEM partner if they use 3D SPI (Solder Paste Inspection). This is a machine with cameras. It measures the height and volume of the paste before the parts are placed. If the paste is wrong, the machine cleans the board automatically. This prevents bad boards from being made.
High-Speed Pick and Place
After the paste is applied, the board moves to the Pick and Place machine. This robot picks up components and puts them on the wet paste. Modern machines are incredibly fast. They can place 30,000 to 100,000 components per hour (cph).
In 2025, components are getting smaller. We now use 01005 package sizes. These are 0.4mm x 0.2mm. They are almost invisible to the human eye. To place these, the OEM factory needs very stable machines. They also need “electric feeders” that are smoother than old mechanical ones. If your design uses these tiny parts, you must check if the factory has new equipment.
Nitrogen Reflow Soldering
The board goes into a long oven called a reflow oven. The air gets very hot (around 250°C). The paste melts and becomes solid metal.
A standard oven uses normal air. But air contains oxygen. Oxygen causes oxidation on the metal pads. This makes the joint weak. High-quality OEM PCB assembly uses Nitrogen (N2) gas in the oven. The nitrogen pushes the oxygen out. This makes the solder joint shiny and very strong. This is essential for BGA (Ball Grid Array) chips where you cannot see the joints.
Supply Chain Strategy: Turnkey vs. Consignment
When you plan your project, you have two business models to choose from. This choice affects your cost and your stress levels.
Turnkey PCB Assembly
In this model, the OEM PCB assembly partner does everything.
- They order the bare PCBs from a fabrication house.
- They buy all the components (resistors, chips, connectors).
- They assemble and test the boards.
This is the standard for 2025. It is popular because the factory has “buying power.” They buy millions of parts. Also, if a part is lost during assembly, the factory must replace it. You do not pay for their mistakes.
Consignment Assembly
In this model, you buy the parts. Then, you box them up and ship them to the factory.
- Advantage: You know exactly where the parts came from. This is good for very expensive or custom parts.
- Disadvantage: It is a logistical nightmare. If you send 1,000 resistors and the machine drops 10, the factory will stop. They will call you to send 10 more. This causes long delays.
Our Recommendation: Use Turnkey services for 90% of your projects. Only use consignment for very rare parts that you already have in your own warehouse.
Cost Analysis
Pricing for OEM PCB assembly can be confusing. It is not a flat rate. It depends on volume, complexity, and technology. We have compiled real market data to help you estimate your budget.
The Setup Fee Trap
Every order has a “setup cost.” This covers the time to program the machines and load the component reels.
- If you build 5 boards, the setup cost might be $200. That is $40 per board just for setup.
- If you build 1,000 boards, the setup cost is still $200. That is $0.20 per board.
Table 1: Assembly Cost Estimation (Per Unit)
| Order Quantity | Setup Cost (Shared) | Assembly Labor | Component Cost (Est.) | Total Cost Per Unit | Lead Time |
| Prototype (5 units) | $50.00 | $30.00 | $100.00 | $180.00 | 5 Days |
| Pilot Run (100 units) | $3.00 | $15.00 | $90.00 | $108.00 | 15 Days |
| Production (1,000 units) | $0.30 | $5.00 | $75.00 | $80.30 | 25 Days |
| Mass Volume (10k units) | $0.05 | $2.00 | $60.00 | $62.05 | 30+ Days |
Key Takeaway: The price drops dramatically as you increase volume. But the biggest drop is in the component cost. Factories get bulk discounts from suppliers when they buy reels of 5,000 or 10,000 parts.
The Hidden Cost of Surface Finish
The “finish” is the coating on the copper pads. It protects the copper from rust before soldering. Different finishes have different prices and technical properties.
Table 2: PCB Surface Finish Comparison
| Finish Name | Description | Cost | Flatness | Best Use Case |
| HASL | Hot Air Solder Leveling | Low | Poor | Simple devices, Through-hole parts. |
| ENIG | Electroless Nickel Immersion Gold | High | Excellent | Complex boards, BGA chips, Touch sensors. |
| OSP | Organic Solderability Preservative | Very Low | Good | Disposable electronics, Short shelf life. |
| Immersion Silver | Silver plating | Medium | Excellent | High-speed signals, Communication devices. |
Engineering Advice: If your board has a BGA or a QFN chip, do not use HASL. The surface is bumpy. The chip will not sit flat. You will have defects. Pay the extra money for ENIG. It ensures a flat surface and a reliable connection.
When you submit a quote on PCBINQ, we offer you this option.
Quality Standards
IPC Class 2 vs. Class 3
When you ask for a quote, the factory will assume IPC Class 2 unless you say otherwise.
- IPC Class 2 (Dedicated Service): This is for laptops, tablets, and home appliances. We want them to work well. But if they break, it is not life-threatening. The inspection criteria allow for small visual imperfections.
- IPC Class 3 (High Reliability): This is for medical devices, automotive airbags, and military gear. The product must work without fail. The inspection is very strict. For example, the solder must fill the hole 75% or more. In Class 2, 50% is acceptable.
Cost Impact: IPC Class 3 assembly costs 15% to 20% more. The factory must run the machines slower. They must do more testing. So, only choose Class 3 if your product truly needs it.
Certifications to Check
A reliable OEM PCB assembly partner should have these certificates:
ISO 9001: General quality management.
ISO 13485: Critical if you are building medical devices.
IATF 16949: Critical if you are building parts for cars.
UL (Underwriters Laboratories): Necessary for selling power products in the USA.
You can see it very clearly on PCBINQ:
Design for Manufacturing (DFM)
You want to save money and reduce defects. The best way is to design your board correctly from the start. This is called DFM. Here are technical tips for 2025.
The Shadow Effect
This is a thermal problem. If you place a very small component (like a resistor) right next to a very large component (like a transformer), you will have trouble.
- The Problem: Inside the reflow oven, the large component blocks the hot air. It creates a “shadow.” The small part stays cool. The solder paste does not melt properly.
- The Solution: Leave extra space between small and large parts. Let the hot air flow freely around them.
Thermal Relief for Ground Pads
Sometimes, a component pin is connected to a large ground plane (a big area of copper).
- The Problem: Copper conducts heat very well. When the soldering iron or oven tries to heat the pad, the ground plane sucks the heat away. The solder joint becomes cold and brittle.
- The Solution: Use “thermal relief” pads. These are small spokes that connect the pad to the ground plane. They reduce heat loss. This makes soldering much easier and more reliable.
Fiducial Marks
Robots need eyes. Fiducial marks are small copper circles (usually 1mm wide) placed on the corners of the PCB.
- The Function: The Pick and Place machine looks for these circles. It uses them to align the coordinate system.
- The Risk: If you forget these marks, the machine has to guess where the board is. The placement accuracy will drop. You might get parts that are crooked.
Testing Protocols
You cannot ship bad boards to customers. Testing is the filter that catches mistakes. There are three main ways to test in OEM PCB assembly.
Automated Optical Inspection (AOI)
This is a visual test. A machine with lights and cameras takes photos of every part. It compares the photo to a “golden sample.”
- What it catches: Missing parts, wrong parts, crooked parts, tombstoning.
- Limitations: It cannot see under chips (like BGAs). It cannot tell if the chip is electrically broken.
In-Circuit Testing (ICT)
This is an electrical test. You build a “bed of nails” fixture. It has spring-loaded pins that touch test points on the board.
- What it catches: Short circuits, open circuits, wrong resistor values.
- Pros: Very fast (10 seconds per board).
- Cons: The fixture is expensive ($2,000+).
- Best for: Mass production.
Functional Circuit Testing (FCT)
This is the final test. You plug the board in. You load the firmware. You check if the LEDs light up and if the buttons work.
- What it catches: Logic errors, bad chips, functional failures.
- Pros: guarantees the product works.
- Cons: Slow. It requires manual labor.
Strategy: For every project, you should demand 100% AOI. If you are building more than 2,000 units, invest in an ICT fixture. It pays for itself by catching defects early.
The Risk of Counterfeit Components
In 2025, the global chip shortage is still a threat. When chips are hard to find, criminals sell fake chips.
- Empty Chips: A plastic package with nothing inside.
- Blacktopped Chips: Old, used chips that are polished and reprinted to look new.
A professional OEM PCB assembly partner protects you from this.
Authorized Sources: We have our own online store for readily available chips, sourced directly from Mouser, Digi-Key, and Avnet. The chips are genuine and sourced directly from these suppliers.
Incoming QC: They inspect the labels and packaging.
X-Ray Testing: They use X-Ray machines to look inside the chip. They check if the die (the silicon) matches the datasheet.
If you receive a quote that is 30% cheaper than everyone else, be careful. They might be using parts from the “grey market.” This is a huge risk for your brand.
Advanced Technologies: Rigid-Flex and HDI
As devices get smaller, the technology gets more advanced.
HDI (High Density Interconnect)
Standard boards use drills to make holes. HDI boards use lasers. Lasers can make tiny holes called “micro-vias.”
- Benefit: You can pack more parts into a smaller space. This is used in smartphones and smartwatches.
- Cost: It is more expensive because the manufacturing process takes longer.
Rigid-Flex PCBs
This combines a hard board with a flexible cable. It eliminates the need for plastic connectors.
- Benefit: Connectors are often the first thing to break. Rigid-flex makes the device more reliable and smaller.
- Assembly Challenge: These boards are floppy. The OEM PCB assembly factory needs special trays (jigs) to hold the board flat during the printing and placement process.
How to Get an Accurate Quote
To get a fast and accurate price, you need to send the right files. This is called the “RFQ Package” (Request for Quote).
Gerber Files: The map of the copper layers.
Centroid File (Pick and Place): An Excel file with X, Y, and Rotation data for every part.
BOM (Bill of Materials): The most critical document. It must list:
- Quantity.
- Reference Designator (C1, R1, U1).
- Manufacturer Name.
- Manufacturer Part Number.
- Description.
Common Mistake: Do not just say “10k Resistor.” There are thousands of 10k resistors. You must specify the size (0402), the tolerance (1%), and the voltage rating. If you are specific, the factory does not have to guess.
Choosing the Right Partner
OEM PCB assembly is the bridge between your idea and your customer. It is a complex mix of chemical engineering, robotics, and supply chain management.
To choose the right partner in 2025, you must look beyond the price tag.
- Look for process control (SPI, Nitrogen Reflow).
- Look for supply chain security (Authorized distributors).
- Look for transparent communication regarding DFM and testing.
At pcbinq, we build our manufacturing standards around these exact pillars. We understand that your product reputation depends on our execution.
By understanding the details in this guide—from the stencil thickness to the surface finish—you are now equipped to have a better conversation with your manufacturer. You can ask the right questions. And most importantly, with a partner like pcbinq, you can build a product that is high-quality, cost-effective, and ready for the market.
FAQ
For prototypes, the lead time is usually 2 to 3 weeks. This allows 1 week for sourcing parts and 1 week for assembly. For mass production, it is typically 4 to 6 weeks. However, if a specific chip is out of stock globally, this can extend to months. Always check stock before you order.
SMT (Surface Mount) parts sit on top of the board. They are small and cheap. Through-Hole parts have legs that go through the board. They are stronger mechanically but take up more space and cost more to assemble. Most modern boards are 90% SMT.
The best way is to minimize the number of different parts. If you have a 10k resistor and a 10.1k resistor, try to change the design so both are 10k. This reduces the number of “feeder slots” needed on the machine. Also, use standard surface finishes like OSP or HASL if your design allows it.
