The terms “low volume” and “high volume” in PCB manufacturing mean more than just the number of boards. They represent two different production philosophies. Each philosophy has its own tools, costs, and supply chain. Choosing the right path is a critical business decision. A wrong choice can lead to high costs. It can also cause long delays.
PCBINQ understands these factors, and below we will explain the fundamental differences between small-batch PCB manufacturing and large-scale PCB production. We will discuss cost structures, manufacturing technologies, and quality control methods. This information will help you make the best choices for your product’s entire lifecycle.
What is Low Volume and High Volume?
First, we need clear definitions. The numbers are not exact. They can change depending on the factory. But we can use general ranges.
What is Low-Volume PCB Fabrication?
Low-volume PCB fabrication typically means producing a quantity from 1 to 1,000 boards. This category includes PCB prototypes. It also includes small initial production runs. The key purpose is testing, validation, or serving a niche market.
The focus of low-volume manufacturing is flexibility and speed. The factory is set up to handle many different designs in one day.
What is High-Volume PCB Production?
High-volume PCB production usually starts at 10,000 units. It can go up to millions of boards. This is for mature products with stable demand. Examples include smartphones, televisions, and automotive electronics.
The focus of high-volume manufacturing is efficiency and low unit cost. The factory is set up to make the same board over and over for a long time.
The Core Difference: Cost Structure
The biggest difference is how cost is calculated. This is the most important factor for business decisions.
Unit Cost
Low Volume: The cost per board is high. This is because the setup costs are spread over a small number of boards. The factory cannot buy materials in huge bulk. So, material costs are also higher.
High Volume: The cost per board is very low. This is the main advantage. The factory buys materials at a huge discount. Also, the setup costs are divided by thousands of units. This makes the setup cost per board very small. This is called economies ofscale.
NRE Costs
NRE is a one-time charge to prepare for manufacturing.
Low Volume: NRE costs are very visible. They include charges for file checks (DFM) and basic tooling. Prototype shops often try to minimize these costs. They might use software-based tools instead of physical ones. The goal is to make it cheap to start a new project.
High Volume: NRE costs are much higher. This is a big investment. It includes creating expensive, durable steel stencils. It also includes building custom test fixtures and programming complex automated machines. The company pays this large cost once. Then, the low unit cost makes up for it over the long run.
Tooling Amortization
Tooling is the physical equipment made for your specific board.
Low Volume: Manufacturers use flexible, adjustable tooling. Or they use “soft” tooling that is cheap but wears out fast. This is fine for making 100 boards. The tooling cost is low.
High Volume: Manufacturers create “hard” tooling. This includes steel fixtures and jigs. These tools are expensive. But they can last for 100,000 cycles without failing. The high initial cost is amortized, or spread, across the entire production run. This makes the tooling cost per board tiny.
Technology and Automation
The machines and processes are very different for low and high volume.
Production Line Setup
Low Volume: The production line is designed for change. Operators frequently change the setup for different jobs. The machines are general-purpose. They can handle a wide variety of board sizes and technologies. There is more manual handling and human intervention. An operator might manually load a panel into a machine.
High Volume: The production line is a dedicated, automated system. Once it is set up for a job, it does not change for weeks or months. Robots move panels from one machine to the next. The line is optimized for one specific task. Any changeover is very slow and expensive. It can stop production for an entire day.
SMT Stencils
SMT (Surface Mount Technology) stencils are used to apply solder paste.
Low Volume: Factories often use frameless, prototype stencils. These are thin sheets of steel. They are cheap. Sometimes, for a single prototype, a “proto-stencil” that is not very durable is used.
High Volume: Factories use framed stencils made of high-quality stainless steel. They might have special nano-coatings. These coatings help the solder paste release perfectly every time. These stencils are expensive but they are very precise and last a long time.
Panelization Strategy
Panelization is how we arrange boards on a large manufacturing panel.
Low Volume: A prototype shop might put many different customer designs on the same panel. This is called “pooling.” It shares the setup cost among many customers. This makes prototyping cheaper.
High Volume: The entire panel is filled with only one design. The layout is optimized to the absolute maximum. The goal is to get the highest number of boards from one sheet of raw material. This reduces waste.
Quality Control and Testing
How we check for errors is also different. The method must match the volume.
Electrical Testing
We must test every board for opens and shorts.

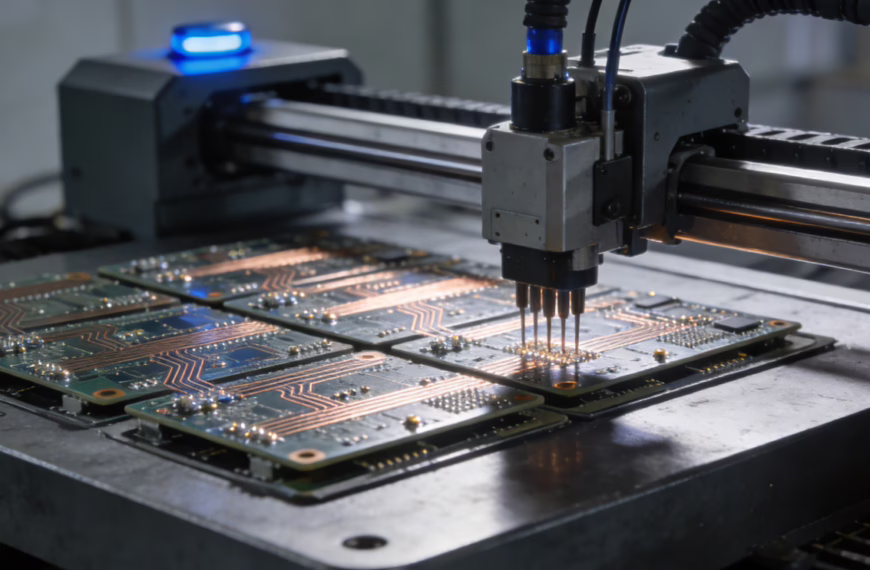

Low Volume: The standard method is the Flying Probe Test. A machine has robotic probes. The probes move around and touch the pads on the board. They check the connections one by one.
Advantage: It requires no custom fixture. It is very flexible. We can test a new design in minutes.
Disadvantage: It is slow. Testing one panel can take a long time.
High Volume: The standard method is the Bed of Nails Test. We build a custom fixture. This fixture has hundreds or thousands of spring-loaded pins. Each pin lines up with a test point on the board. The board is pressed onto the fixture. All points are tested at the same time.
Advantage: It is extremely fast. A test can take seconds.
Disadvantage: The fixture is very expensive to build. It can cost thousands of dollars. It only works for one specific board design.
Automated Optical Inspection
AOI machines use cameras to scan for defects.
Low Volume: AOI is used. But the programming might be simpler. The focus is on finding major errors like missing parts or bad solder joints. The pass/fail criteria might be a little wider.
High Volume: AOI systems are highly optimized. The programming is very detailed. The machine learns from past errors. It can detect very small changes in component position or solder volume. This is part of Statistical Process Control (SPC). The goal is to detect problems before they create a large number of bad boards.
First Article Inspection
FAI is a detailed check of the very first board produced.
Low Volume: FAI is important but might be a simpler process. It confirms the setup is correct.
High Volume: FAI is a major event. It is a formal, documented process. The first board off the line is measured completely. Every dimension is checked. Every component is verified. Production does not continue until the FAI report is approved by the customer.
Supply Chain and Material Sourcing
How a factory buys materials is a key difference.
Component Sourcing
Low Volume: Prototype shops buy components in small quantities. They often use distributors like Digi-Key or Mouser. They pay a higher price per component. The priority is availability, not cost. They need to get the parts now to meet the quick turnaround time.
High Volume: Manufacturers have dedicated supply chain teams. They work directly with component makers. They negotiate long-term contracts for millions of parts. This gives them very low prices. They also manage the risk of component shortages. They might buy parts months in advance.
Laminate (Raw Board) Sourcing
Low Volume: A small shop will use standard FR-4 material they keep in stock. If you need a special material, they will order a single sheet. This is expensive.
High Volume: A large factory buys laminate directly from the source, like Kingboard or Shengyi. They buy huge quantities. They can get custom thicknesses or properties. The price per sheet is much lower.
Flexibility and Design Changes
Your product is not static. It evolves. The manufacturing method must match this reality.
Low-Volume Flexibility
This is the biggest advantage of small batch PCB manufacturing.
Easy Changes: If you find a mistake in your first batch of 10 boards, you can fix the design easily. The cost of the mistake is low. The next batch of 10 can have the correction.
Fast Iteration: This is perfect for product development. You can test one version, learn, and then build another. The cycle is fast.
High-Volume Inflexibility
This is the biggest risk of mass production PCB.
Changes are Hard: Once the automated line is running, a design change is a disaster. It means stopping production. It means scrapping old materials. It means creating new, expensive tooling. A simple change can cost tens of thousands of dollars.
Design Must Be Final: You must be 100% sure your design is perfect before you start high-volume production. The design must be fully tested and validated. There is no room for error.
When to Choose Each Method
Now we can create a simple guide. You should choose the method based on your product’s stage.
When low-volume PCB fabrication is the smart choice
Choose low-volume runs if you need a quick prototype to prove an idea, or if you want to validate the design before scaling up. It’s ideal for niche products with modest demand, projects that require rapid turnaround, and situations where further design changes are likely. This option also suits startups that must control upfront costs while iterating quickly.
When high-volume PCB production makes sense
High-volume manufacturing is the right choice once the design is proven and locked in. It works best when demand is well established, cost optimization is critical, and long-term production planning is possible. With stable forecasts and the ability to invest in tooling and NRE, this approach delivers maximum efficiency at scale.
Mid-Volume Manufacturing
What if you need 2,000 boards? This is often called mid-volume.
Mid-volume manufacturing is a hybrid. It tries to balance cost and flexibility.
- A factory might use some automation, but not a fully robotic line.
- They might use a flying probe for the test, but optimize the program for speed.
- They will negotiate better material prices than a prototype shop. But they will not get the same discounts as a giant factory.
Many contract manufacturers specialize in this mid-volume space. It is for products that have passed the prototype stage but are not yet ready for millions of units.
Finding the Right Manufacturing Partner
The ideal partner depends on your needs. Some factories only do one thing well.
Prototype Specialists: These stores compete on speed. PCBINQ has an online quoting system and can deliver circuit boards within 24 hours.
High-Volume Giants: These factories collaborate with large corporations. They possess massive production facilities and require large orders, and are not interested in small projects.
All-in-One Partners: Some manufacturers offer a complete path. They can take you from prototype to mass production.
Advantage: The transition is smooth. The same engineering team works on your project from start to finish. They understand your product. The DFM rules are consistent.
Process: You start with their prototype service, which uses flexible manufacturing methods. Once the design is stable, the project moves into full production. At this stage, hard tooling is created and automated processes are put in place. For growing companies, this approach is often the most efficient solution.
Conclusion
The choice between low-volume PCB fabrication and high-volume PCB production is a strategic one. It is not just about quantity. It is a trade-off between speed, flexibility, and cost.
Low volume is about learning and speed. The cost per unit is high, but the initial investment is low. It is perfect for new ideas and development.
High volume is about efficiency and scale. The cost per unit is very low, but the initial investment is high. It is perfect for mature, successful products.
Understanding these differences is key. It allows you to align your manufacturing strategy with your business goals. It ensures you do not pay for expensive tooling too early. It also ensures you are ready to scale when your product succeeds. Always evaluate your project’s current stage. Then, choose the manufacturing partner and process that fit your needs best.
