How to solve ESD problems in the PCB design stage?

Estimated reading time: 11 minutes

You should fix ESD problems early in PCB design. About one-third of PCB failures happen because of electrostatic discharge. ESD can quietly hurt or break parts. Sometimes, ESD makes things overheat or burn.

This happens more when layout or spacing is bad. You might not see ESD damage at first. So, it is important to plan ahead. Use good layout, strong grounding, and the right protection parts. These steps help keep electronics safe from hidden ESD dangers.

Key Takeaways

Think about ESD protection early when you design your PCB. This helps stop hidden damage and saves money. Use enough space, special coatings, and smooth trace shapes. These things help block static electricity from jumping between parts. Make a strong ground plane and connect all metal parts to ground.

This gives static electricity a safe way to leave your circuits. Pick ESD suppression parts like TVS diodes and put them near connectors. This stops voltage spikes fast. Add smart firmware that finds errors and fixes data. This helps your device keep working after ESD events.

Understanding ESD Problems

Play

Causes of ESD

ESD problems happen when static electricity builds up and then jumps. This can happen in different ways. Static charges form when you rub things together, like walking on a carpet. Dry air makes this worse.

When the air is dry, static can build up on your clothes, tools, or even the PCB. If the room has less than 30% humidity, ESD risk goes up. Keeping the air between 30% and 70% humidity helps stop static from building up.

Other common causes are:

• Friction between materials (triboelectric effect)
• Human actions, like taking off tape or touching parts
• Induction from things nearby that have a charge
• Fast air blowing dust or small bits around
• Touching things that already have a charge

Tip: You can lower ESD risk by wearing ESD wrist straps, using anti-static mats, and keeping your work area clean and humid.

ESD Damage in Electronics

ESD problems can hurt electronics in ways you might not see right away. When static hits a sensitive part, it can break tiny pieces inside the chip. You might see:

• Gate oxide breakdown
• Burned metal lines
• Short circuits or open circuits
• Surface scratches or cracks
• Contamination that causes long-term failures

Some damage happens fast. The device stops working, so you know there is a problem. Other times, the damage is hidden. The device works at first but breaks later. This is called latent failure. Even a small ESD event can make a part weak, so it may not last long.

You should know that ESD problems can affect many things, like smartphones and cars. These failures can cause data loss, make things work badly, or break the device. As electronics get smaller, they get even more sensitive to ESD.

Insulation and Separation

Clearance and Creepage

You can help stop ESD by leaving enough space between PCB traces and pads. This space is called clearance. Clearance means the shortest air gap between two points. Creepage is the shortest path along the board’s surface. Both clearance and creepage help block ESD from moving between parts.

To make ESD protection better, you should:

• Make more space between high-voltage and low-voltage traces.
• Use bigger gaps where ESD might get in, like at connectors or open pads.
• Do not use sharp corners on traces. ESD can jump from sharp points.
• Add slots or grooves in the PCB to make creepage distance longer.

Tip: Always check your board’s voltage rating. If the voltage is higher, you need more clearance and creepage. Follow the safety rules for your field.

Protective Coatings

You can put a protective coating on your PCB to help stop ESD. These coatings work like a shield. They keep static away from sensitive parts. Conformal coatings, potting, and different resins each have their own good points.

Here is a simple table about common protective materials:

Protective Material	Key Properties for ESD and PCB Use	Advantages and Limitations for ESD Protection
Conformal Coatings	Thin, helps block dust and water, better dielectric resistance	Easy to check and fix; types are different
Potting	Fills the case, strong against hits and arcs	Strong wall; hard to fix if broken
Acrylic Resin (AR)	Good at blocking electricity, easy to take off	Cheap; bends a little
Epoxy Resin (ER)	Tough, stands up to chemicals	Very strong; not very bendy
Silicone Resin (SR)	Bends well, keeps out water and chemicals	Good for shaking; not great against scratches
Urethane Resin (UR)	Strong against chemicals and scratches	Hard to take off; strong wall

When you use coatings like acrylic or silicone, you make a wall that stops ESD fields. This keeps your PCB safe from damage, data loss, and wrong signals. Coatings also help your PCB last longer, even in hard places like factories or outside. For the best ESD protection, use coatings with good PCB layout and ESD-rated parts. Using all these steps together gives you strong, long-lasting ESD safety.

PCB Materials

Grounding and Shielding

Good grounding and shielding stop ESD problems before they start. You can use these methods to keep your PCB safe from static and noise.

Ground Plane Design

A solid ground plane is one of the best ways to protect your PCB. You should use a dedicated ground plane layer that covers the whole board. This layer gives static electricity a safe path to flow away from your parts.

Here are steps you can follow to make your ground plane work well:

1. Use a continuous ground plane in multilayer PCBs. This lowers noise and stops ESD from spreading.
2. Connect all device grounds straight to the ground plane. This avoids ground loops and keeps the return path short.
3. Fill empty spaces with copper and connect them to ground. This stops these areas from acting like antennas.
4. Arrange your PCB layers in this order: signal, ground, power, signal. This setup blocks ESD and other noise.
5. Keep return paths and loop areas as short as possible. Short paths lower the chance of ESD reaching your parts.
6. Place guard traces next to long signal lines. Guard traces help steer ESD away from sensitive signals.
7. Do not split the ground plane with big holes or many vias. Gaps make the ground less effective.

Tip: Guard traces work best when you put them around important signal lines. They give ESD a path to ground and protect your signals.

You should also ground any exposed metal parts, like connectors or shields. When you ground these parts, static charges move safely to earth or a common ground. This stops ESD from reaching your circuits. A grounded metal shield can lower ESD by up to 80 dB. This keeps your devices safe from sudden or hidden failures.

Shielding Methods

Shielding blocks ESD and other unwanted signals from getting to your PCB. You can use metal covers, cages, or special materials to make a shield.

Here is a table showing common shielding materials and how well they work:

Shielding Materials	Characteristics / Effectiveness
Tin plated cold rolled steel	Cheapest; best below 100 MHz; easy to solder
Tin plated copper	Best above 200 MHz; easy to solder
Nickel silver	Common; good shielding
Stainless steel	Good for humid places; resists rust
Tin plated phosphorous bronze	Common choice
Aluminum	Not used much for PCBs; hard to solder and does not sink heat well

You can also use different shielding techniques:

Shielding Techniques	Description / Effectiveness
Complete six-sided metallic enclosure	Makes a Faraday cage around parts; uses a metal cover and ground plane; blocks ESD from all sides
Solid ground plane	Must be continuous to work well
Avoidance of apertures	Fewer holes and gaps mean better shielding
Two-piece PCB shield designs	Removable covers, vent holes, and padding help protect and cool the board
Proper grounding	Always ground your shield for best results

You should always ground your shield. This gives static a safe way out and keeps your PCB safe. If you use a metal box or cover, connect it to the ground plane. Try to keep holes and seams small. Big gaps let ESD and noise get in.

Note: Good grounding and shielding work together. When you use both, you lower the risk of ESD problems and make your PCB last longer.

ESD Suppression Components

Component Selection

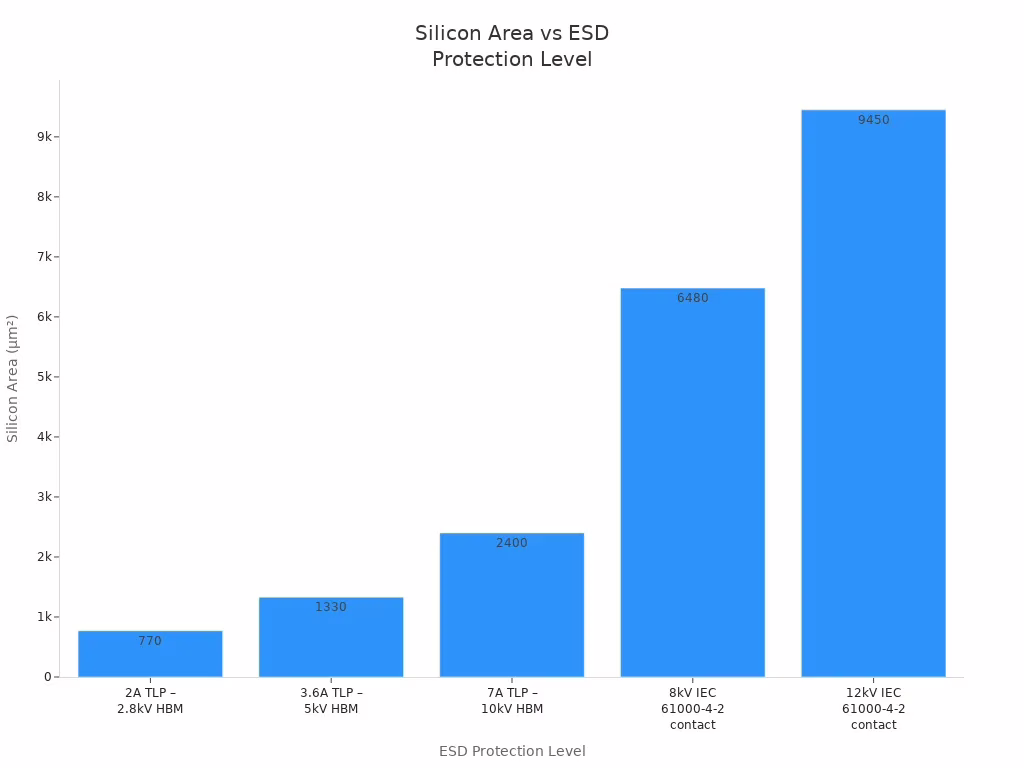

You can fix ESD problems by picking the right suppression parts for your PCB. TVS diodes and multilayer varistors (MLVs) are used most often. TVS diodes act very fast and stop voltage spikes before they hurt parts. Use unidirectional TVS diodes for power lines. Use bidirectional TVS diodes for signal lines that go both ways. MLVs can take in more energy and work well in tough or hot places. But MLVs are a little slower than TVS diodes. You might pick MLVs if your board faces higher voltages or needs more EMI filtering.

When you pick ESD suppression parts, check these things:

1. Make sure the working voltage matches your circuit’s voltage.
2. Use unidirectional diodes for one-way signals and bidirectional for two-way signals.
3. For fast data lines, pick parts with low capacitance to keep signals clear.
4. Check that the peak pulse current rating is high enough for the biggest surge.
5. Look at the size and number of channels to fit your board.

Tip: Hybrid circuits that use TVS diodes, MLVs, gas discharge tubes, and fuses give stronger, layered protection.

Placement Strategies

You need to put ESD suppression parts in the right places to protect your board. Place TVS diodes or MLVs as close as you can to connectors, I/O ports, or any spot where ESD could get in. This stops surges before they reach your chips. Keep the ground path from the ESD part to the ground plane very short. Short paths lower the voltage spike during an ESD event.

Follow these best steps:

• Group protected parts close together to keep traces short.
• Put sensitive parts near the middle of the board, away from the edges.
• Do not run important signal lines along the PCB edge.
• Use high-frequency bypass capacitors near protected ICs to cut down charge injection.
• Make loop areas small in your layout to lower currents from ESD pulses.

If you protect all outside connections and keep your layout tight, you lower the risk of ESD problems. Planning early and placing parts carefully makes your PCB much safer.

Firmware Strategies

When you make a PCB, hardware is not the only thing to think about. Firmware can help protect your system from ESD problems too. Good firmware strategies help your device recover after ESD events. This keeps your device working without big problems.

Error Handling

Smart error handling in firmware can find and fix ESD problems. ESD can cause glitches, mess up data, or freeze your device. If you use error detection routines, your system can catch these problems early.

• Use checksums or CRCs to see if data changed by mistake.
• Add watchdog timers. These timers restart your system if it stops.
• Watch important signals and inputs for strange values. If you see something weird, write it down or try to fix it.
• Use retry logic for important jobs. If a job fails, your firmware can try again.

Tip: Always write down ESD errors. This helps you find weak spots and make better designs later.

System Recovery

After ESD, your system may need to get back to normal fast. You can use different ways to fix things and avoid long downtime.

1. Page Control Stabilizer: This checks and fixes memory tables before shutdown. It finds broken entries or marks them as bad. This lets your system save data and stops endless restarts.
2. On-Line Directory Salvage: Your firmware can check and fix file folders while running. It repairs broken folders and finds lost files. You do not have to stop everything for a big repair.
3. Volume Dumping and Reloading: You can make regular backups of your storage. If ESD causes data loss, you can reload files from backups. Use full and small backups to save time and keep data safe.

By using these recovery ways, your device can bounce back after ESD hits. You keep your system stable and protect important data. This gives your PCB design another layer of defense against ESD problems.

You can keep ESD problems away by using many ways together. These ways include grounding, shielding, ESD-safe tools, and circuit-level protections. If you plan early, you can find weak spots fast. Then you can use the right fixes from the start. Check your design often and change your steps to stop new risks.

Always put ESD prevention first in every PCB project. This helps your board work better and saves money by stopping failures.
