How to Read PCB Markings and Recognize Electronic Components

Estimated reading time: 12 minutes

When you use a printed circuit board, it’s important to quickly and accurately identify each electronic components pcb. Reading PCB markings correctly helps you locate electronic components pcb and trace signal paths efficiently. This speeds up troubleshooting and repairs.

Using clear and strong markings reduces mistakes and allows you to fix issues faster. By examining electronic components pcb with deep learning and image processing, you can achieve over 90% accuracy. These methods help you detect problems and recognize every electronic components pcb, making your work easier and more reliable.

Key Takeaways

• Use reference designators like R, C, D, and U. These help you find parts on a PCB fast. They also help you not make mistakes.
• Look at polarity marks on diodes and capacitors. This helps you put them in the right way. It also makes sure the circuit works.
• Learn to spot passive, active, and electromechanical components. You can do this by looking at their shapes, markings, and what they do.
• Tell surface-mount parts from through-hole parts by their size. Also, see how they sit on the board. This makes them easier to find.
• Look closely at unknown components. Use datasheets and check the markings. This helps you not make mistakes and keeps repairs safe.

PCB Markings Overview

Play

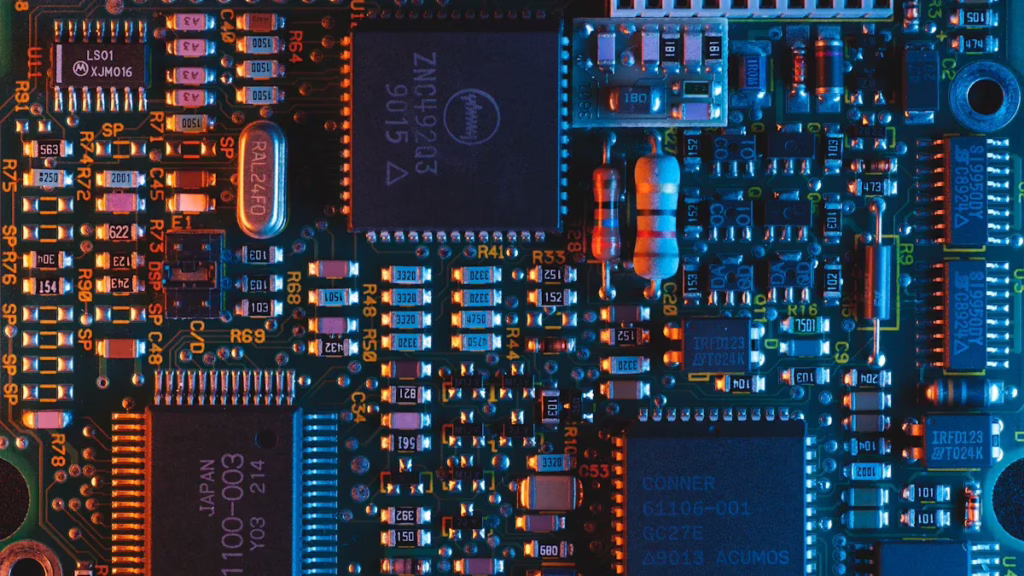

When you look at a printed circuit board, you see lots of symbols, letters, and numbers. These markings help you know each electronic components pcb and how to put them in the right place. If you learn to read these markings, you can work faster and make fewer mistakes. Let’s look at the main types of PCB markings you will see.

Reference Designators

Reference designators are short codes next to each part on the board. These codes use letters and numbers to show what kind of part you see. For example, “R” means resistor, “C” means capacitor, and “D” means diode. You can use these codes to find and check electronic components pcb when you build or fix a board.

Here is a table that shows common reference designators and what they mean:

Component Type	Reference Designator Letter
Resistors	R
Capacitors	C
Inductors	L
Diodes	D
Integrated Circuits	U
Transistors	Q
Connectors	J
Fuses	F
Relays	K
Transformers	T
Motors	M
Switches	S
Headers	H
Plugs (Male Connectors)	P
Crystal Oscillators	Y
Miscellaneous	X

Tip: Reference designators follow rules used by many companies, so you can use them on almost any board. This system helps you not get confused and makes fixing things easier.

You will also see other markings on PCBs, like:

• Codes for relays, transformers, switches, meters, lights, connectors, and fuses
• Labels for FCC, CE, RoHS, and RU
• Warnings about static for sensitive parts
• The WEEE symbol (a crossed-out trash can) for recycling in the EU

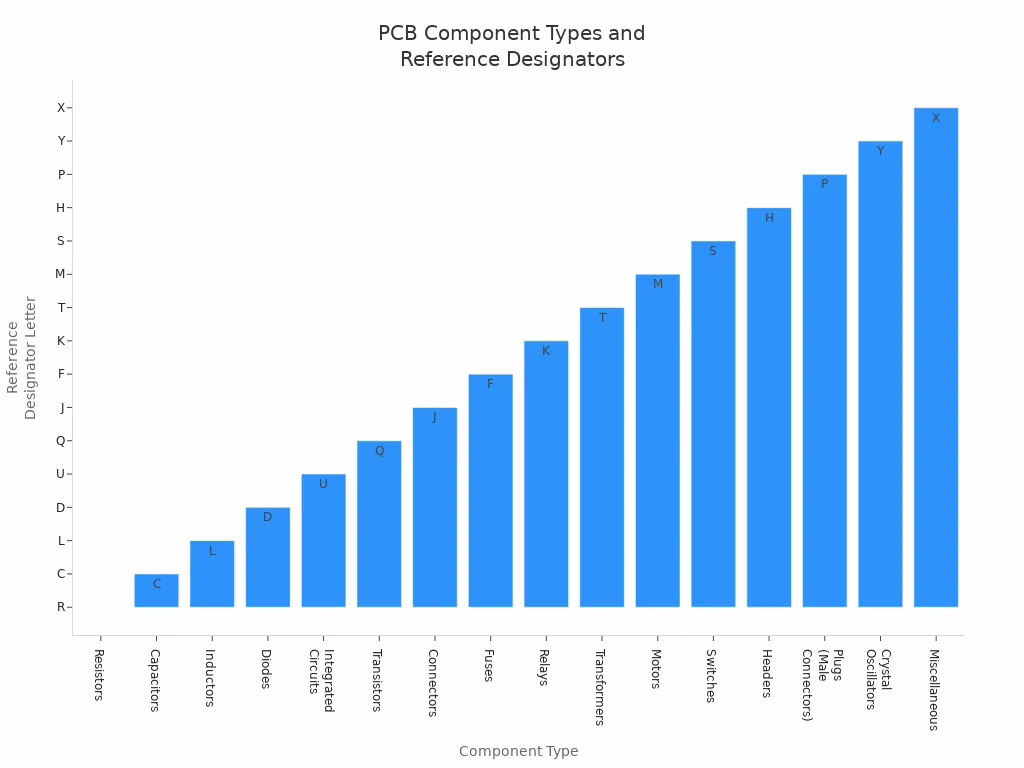

Here is a chart that shows the most common reference designators used in electronics:

Polarity and Orientation

Some electronic components pcb, like diodes and electrolytic capacitors, have a positive and a negative side. You must put these parts in the right way, or the circuit will not work. PCB designers use special marks to show you how to place these parts.

You will see these common polarity marks:

• A stripe or band on the negative side of electrolytic capacitors, often with a minus (-) sign
• A longer wire for the positive side on through-hole capacitors
• A ‘+’ sign or a slanted edge for the positive side on tantalum and aluminum capacitors
• A stripe or band near the cathode side on diodes
• Diode symbols printed on the board to show direction

Note: Rules like IPC-7351B and IPC-2221 say polarity marks must be clear and easy to see. These marks should still be visible after you put the part on, so you can check your work.

Manufacturers also use:

• Black marks or slanted bases on surface-mount capacitors
• Silkscreen symbols that match the part’s body marks
• Checks inside the factory to make sure all polarity marks are right before building

Value Codes

Value codes tell you the exact value of a part, like resistance or capacitance. You will see different systems for resistors and capacitors.

For resistors, you might see:

• Colored bands (Resistor Color Code, IEC 60062) on resistors with wires. Each color means a number.
• 3-digit or 4-digit codes on small resistors. For example, “103” means 10,000 ohms (10 and three zeros).
• EIA-96 codes for very exact resistors. These use two numbers and a letter, like “01A” for 100 ohms.
• The letter “R” instead of a decimal point, like “4R7” for 4.7 ohms.

Capacitors sometimes use codes like these, but their marks are often harder to read. You may need a calculator or chart to figure out capacitor values.

Tip: Always check value codes before you change or put in a part. This helps you not make mistakes and keeps your circuit working right.

Types of Electronic Components PCB

Modern electronic components pcb fit into three main groups. These are passive, active, and electromechanical. Each group does a special job in a circuit. You can tell them apart by their shapes and markings. Where they are on the board also helps you know what they are.

Passive Components

Passive components do not need extra power to work. They control or store energy in simple ways. Here are some you will see a lot:

• Resistors (R):
  Resistors slow down electric current. They look like small tubes with colored bands or numbers. The letter “R” is next to them on the PCB.ComponentPCB MarkingVisual FeaturesFunction SummaryResistorRColor bands or printed numbersControls current, divides voltage
• Capacitors (C):
  Capacitors store and release electrical energy. They come in many shapes. Electrolytic capacitors look like tiny cans. Ceramic ones are flat and round. The PCB uses “C” to mark them.ComponentPCB MarkingVisual FeaturesFunction SummaryCapacitorCCylindrical (electrolytic), flat (ceramic), or rectangular (SMD)Stores charge, smooths voltage
• Inductors (L):
  Inductors store energy in a magnetic field. They can look like coils of wire or small blocks with wire. The letter “L” marks them on the board.ComponentPCB MarkingVisual FeaturesFunction SummaryInductorLCoils or blocks, sometimes gold-coloredStores energy in magnetic field

Tip: Fuses are passive components too. They protect circuits from too much current. The marking “F” is used for fuses.

Active Components

Active components need power to work. They control how electricity moves. They can also make signals stronger or turn them on and off.

• Diodes (D):
  Diodes let current go only one way. One end has a stripe to show the negative side. The PCB uses “D” to mark diodes.
• Transistors (Q):
  Transistors work as switches or amplifiers. They come in different shapes. Some look like black rectangles or have three legs. The board marks them with “Q”.Component TypeTypical PCB Markings/DesignatorsMarkings on Component SurfaceAdditional Identification DetailsTransistorsQType (NPN, PNP, MOSFET), ratingsPCB marking helps locate; surface markings show type and specs
• Integrated Circuits (IC or U):
  Integrated circuits are chips that do many jobs at once. They look like black rectangles with lots of legs. A notch or dot shows where pin 1 is. This helps you put them in the right way. The PCB may use “IC” or “U” to mark them.Component TypeTypical PCB Markings/DesignatorsMarkings on Component SurfaceAdditional Identification DetailsIntegrated CircuitsIC or UManufacturer logo, part number, package typeNotch or dot for pin 1; check datasheet for details

Note: Always look for the orientation marks on ICs. A dot or notch shows pin 1. If you put an IC in the wrong way, it can break your electronic components pcb.

Electromechanical Components

Electromechanical components use both electrical and moving parts. They help you connect, switch, or control circuits.

• Switches (S or SW):
  Switches let you turn circuits on or off by hand. The PCB uses “S” or “SW” for switches. They can look like levers, buttons, or sliders.
• Relays (K):
  Relays are switches that use electricity to work. They often look like small boxes. The PCB marks them with “K”.
• Connectors (J, JP, or P):
  Connectors join different parts of a circuit. They can be rows of pins or sockets. The PCB uses “J” for jack, “JP” for jumper, or “P” for plug.

Tip: These markings help you find and change parts when you fix things. Always match the reference designator on the board with the part you are working on.

Each group of electronic components pcb has its own look and marking style. Learning these clues helps you spot and understand every part on the board quickly.

Surface-Mount vs. Through-Hole

Visual Differences

You can spot the difference between surface-mount and through-hole components by looking at how they sit on the PCB. Surface-mount devices (SMDs) rest flat on the board. Through-hole components have leads that go through holes in the board. This table shows the main differences:

Feature	Through-Hole Components	Surface-Mount Components (SMD)
Mounting method	Leads inserted into drilled holes	Soldered directly onto surface pads
Lead spacing	Larger, often 0.100” or more	Much smaller, as little as 0.0157”
Footprint size	Larger, takes up more space	Smaller, allows higher density
Appearance on PCB	Leads and holes visible	Flat, no holes visible
Assembly side	Usually one side	Can be on both sides
Clearance from PCB	Components stick out from board	Sit close to the board
Visual identification	Easy to see leads and shapes	Compact, no visible leads

• SMDs are smaller and lighter. You can fit more of them on a board.
• Through-hole parts are bigger and easier to handle. Their leads stick out, making them easy to spot.
• SMDs can go on both sides of the PCB, while through-hole parts usually stay on one side.

Tip: If you see a part with no visible leads and it sits flat, it is likely a surface-mount component. If you see wires poking through the board, you are looking at a through-hole part.

Marking Styles

Markings help you identify each component. Through-hole parts have more space, so you often see clear numbers, letters, or color bands. For example, a resistor might show colored stripes or a printed value. This makes it easy to read the part’s value and type.

Surface-mount components are much smaller. Manufacturers use short codes, like “103” for a 10,000-ohm resistor. These codes fit on tiny surfaces but can be hard to read. To help you, designers use white silkscreen text with a minimum height and width for better clarity. Even with these tricks, SMD markings are less readable than those on through-hole parts.

Manufacturers also use special labels for SMDs. These labels can handle high heat and chemicals during assembly. You might see barcodes, QR codes, or laser markings. These marks help track each part and make sure you use the right one. Labels often use polyimide material, which stays readable even after soldering.

Note: Always check both the PCB and the component for markings. This helps you avoid mistakes, especially when working with small SMD parts.

Identify Unknown Components

Visual Inspection

When you find an unknown part on a PCB, start with a careful look. Use a magnifying glass or a stereo microscope to see small details. You can spot clues like shape, size, and any numbers or letters on the part. Try these steps:

1. Use a magnifier or microscope to check the component’s markings and body.
2. Look at the solder joints for signs of damage or poor connections.
3. Check the silkscreen layer on the PCB for reference designators like R5 or U2.
4. Compare the part to others on the board. Look for differences in color, font, or logo.
5. Watch for signs of damage, such as cracks, burns, or leaks.

AOI systems with cameras can help you find defects or missing parts, especially on complex boards.

You can also use online tools and forums to compare markings. Sites like partsearch.io let you cross-reference unknown codes and find possible matches.

Using Datasheets

After you spot markings or numbers, search for a datasheet. Most electronic components pcb have a part number or manufacturer code. Enter this code into a search engine with the word “datasheet.” You will often find a PDF file with all the details you need.

• Datasheets show you the part’s function, pin layout, and ratings.
• They help you match the part to the correct spot on the board.
• If you cannot find a datasheet, try searching for similar codes or ask in online electronics forums.

Always double-check the part number and manufacturer. Some codes look alike but mean different things.

Avoiding Mistakes

You can avoid errors by following a few simple habits:

• Always match the reference designator on the PCB with the part you want to check.
• Compare markings for oddities, like misspelled names or strange logos. These can signal counterfeit parts.
• Use a multimeter or component tester to check unknown parts before replacing them.
• Keep a record of what you find. Write down part numbers and where you found them.
• Use trusted online resources and datasheets to confirm your findings.

Careful inspection and research help you identify every part and keep your repairs safe and accurate.

You can learn to read PCB markings by using some easy steps. First, look for reference designators on the board. Next, notice the shapes of the parts and any special marks. A simple checklist can help you work faster and make fewer mistakes.

Step	Identification Tip
Use Reference Designators	Look for codes like R, C, D, Q, U, K, T, BT
Identify Passive Components	Find resistors, capacitors, and inductors by their look
Identify Diodes	Check for bands or symbols that show which way current goes
Identify ICs	Use part numbers to search for datasheets
Identify Connectors	Find headers, jacks, or plugs used for connections

If you keep practicing, you will get better at reading PCBs every time!
