Ultiboard serves as a versatile tool for PCB design, particularly useful when working with all size prototype paper PCB universal experiment matrix circuit board layouts. The software allows you to define board outlines, position components, and establish precise board dimensions. Proper sizing is crucial for both functionality and manufacturing feasibility. This comprehensive guide walks you through the process of modifying board dimensions in Ultiboard.
What is the PCB board size?
PCB dimensions refer to the board’s width and height, measured in either millimeters or inches. These measurements define the board’s physical boundaries and shape. The size impacts component placement, trace routing, hole positioning (including the standard hole size of PCB circuit board), and panel optimization during manufacturing. Appropriate sizing must comply with both tool limitations and manufacturing specifications.
Precise dimensioning is essential. If the board is too small, components or holes might extend beyond the boundaries. Oversized boards waste materials and increase production costs. A general guideline is maintaining approximately 0.5 inch (12 mm) clearance between components and board edges, facilitating easier routing and drilling while preventing component truncation.
Importance of Correct PCB Dimensions
Undersized boards risk component or hole overflow beyond edges, while oversized boards result in material waste and increased expenses. Maintain roughly 0.5 in (12 mm) spacing between components and edges to ensure efficient routing, drilling operations, and prevent component cutoff issues.
Common PCB Board Sizes
Standard sizes include 68 × 53 mm for Arduino Uno boards, approximately 50 × 120 mm for smartphone PCBs, 305 × 244 mm for ATX motherboards, and 170 × 170 mm for Mini-ITX boards. You can either adopt these standard dimensions or specify custom measurements based on your requirements.
Step-by-Step Guide to Change PCB Board Size in Ultiboard

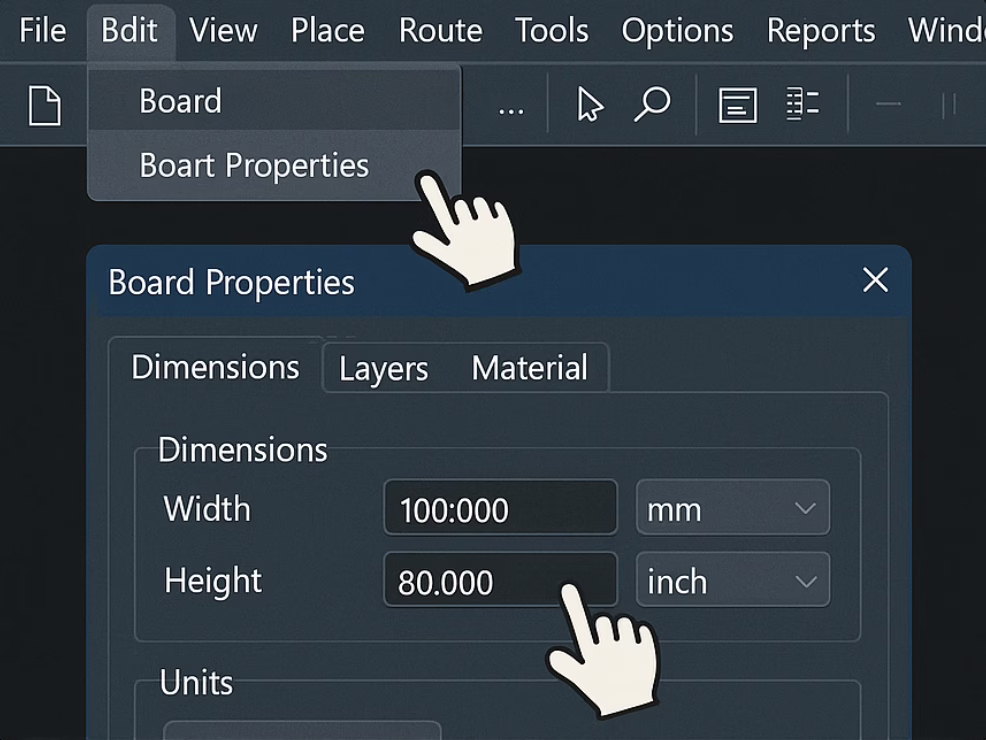

To modify board dimensions, launch your PCB file in Ultiboard and navigate to Board > Board Properties. Input fields for width, height, and measurement units (mm or inch) will appear. Enter your desired dimensions and adjust units if necessary. For irregular shapes, select Custom Shape to draw or input coordinate points. Set the origin point (0,0) at a known corner to ensure proper component alignment within your enclosure.
Tip： When reducing board size, Ultiboard displays warnings for components that exceed the new boundaries. Relocate these components within the board outline before proceeding.
Before finalizing your design, ensure all holes (including standard hole size of PCB circuit board specifications), power regions, and silkscreen markings remain within the board outline, with no traces crossing the boundaries. For a realistic visualization, access the 3D Preview through View > 3D Preview menu. This perspective displays your all size prototype paper PCB universal experiment matrix circuit board in actual dimensions. Remember that size modifications after component placement might necessitate trace rerouting.
If components extend beyond the outline, Ultiboard highlights them in red, indicating the need for repositioning within the board boundaries. Should any traces break during this process, utilize the Routing > Rebuild Connections feature for automatic repair. In cases where board dimensions unexpectedly reset, save your work and ensure size fields are unlocked in Board Settings before attempting modifications again.
Conclusion
To successfully modify board dimensions in Ultiboard, follow these steps: access properties, specify new measurements, resolve overlaps, perform rule verification, and conduct a final 3D inspection. This systematic approach ensures your design meets manufacturing requirements. With experience, you’ll execute size adjustments efficiently and accurately.
FAQ
Execute a design rule check via “Tools > Design Rule Check”. This identifies clearance issues near edges. Alternatively, use Ctrl + M for direct distance measurement.
Launch the 3D preview via “View > 3D Preview”. Verify that holes, power areas, and silkscreen elements remain within board boundaries. Confirm no traces cross edges. Your file is then ready for manufacturer submission.
Access your PCB file, select “Board” from the top menu, then “Board Properties”. Input fields for width, height, and units will be available for modification.
