Conventional printed circuit boards (PCBs) are made of materials that are difficult to remove. They also employ procedures that produce hazardous waste. When burned, the materials in the typical FR-4 laminate are toxic. Additionally, it makes use of environmentally harmful etching chemicals. This indicates that the quantity of electronic waste, or “e-waste,” increases quickly as more electronic devices are produced. For landfills, this e-waste is a major issue. It poses a serious threat to human health. The industry needs to develop new methods for producing PCBs. Eco-friendly PCB boards must be used instead.
Innovation is the key to solving this environmental issue. It involves altering the manufacturing processes and the materials used. We must abandon outdated, dangerous practices. We must develop fresh, environmentally friendly methods for constructing these crucial elements. Cleaner processes and sustainable materials are currently the industry’s main priorities. The future of electronics manufacturing is being altered by this focus. It is altering our perspective on disposal and design. Being green is not the only aspect of this change. The goal is to adapt electronics manufacturing to the future. Making it last is the goal.
Examining Eco-Friendly PCB Materials as Sustainable Substrates
The largest component of any PCB is the substrate. It is the fundamental substance that keeps everything together. As a result, the substrate is the primary focus when creating environmentally friendly PCB boards. Finding safe materials is the aim. Finding reusable materials is the aim.
Bio-based Substrates
The study of bio-based substrates is one important field. These materials are derived from renewable resources. They are not derived from oil. They make use of natural resources such as starches and plant fibers. For instance, cellulose is used to make some new laminates. Wood pulp is the source of cellulose. This substance is robust. It is simple to obtain. In many applications, it can be used in place of conventional glass epoxy.
The production of these bio-based substrates requires less energy. At the end of the PCB’s life, they are simpler to decompose. They are therefore a fantastic choice for environmentally friendly PCB boards. Making sure they are as strong and heat-resistant as the previous materials is the difficult part. New techniques for binding the fibers and resins are needed for this. To satisfy all industry standards for performance and dependability in high-stress electronic environments, thorough testing is necessary.
Halogen-Free Materials
The switch to halogen-free materials is another significant development. Halogen elements such as chlorine and bromine are used in conventional FR-4 laminates. These components are incorporated into the laminate. They have flame-retardant properties. This prevents the board from easily catching fire. However, hazardous toxins are released when PCBs containing halogens burn. Dioxins are released by them. The environment is negatively impacted by these toxins. They are unhealthy.
Thus, the industry has begun to use materials free of halogen. Phosphorus and nitrogen compounds are used in these substitutes to prevent fires. They carry out the same task as halogens. When heated, however, they do not release the same harmful toxins. For many contemporary eco-friendly PCB boards, halogen-free materials are therefore a fundamental requirement. This transformation is challenging. This is due to the requirement that the new materials function just as well as the old ones. They have to be formidable. The heat must be tolerated. For high-speed data transfer, the substitute materials must also preserve signal integrity. Manufacturers are continuously trying to get past this important technical obstacle.
Recycled and Recyclable Materials
Utilizing waste to create new products is the concept behind recycled and recyclable materials. This relates to the circular economy. Using materials from outdated PCBs is one method. After that, they are utilized to create new PCB materials. This prevents waste from ending up in landfills. Making the eco-friendly PCB boards completely recyclable is another method. This entails utilizing materials that are simple to separate at a later time. For example, the substance might be made to dissolve readily. This facilitates the recovery of copper and other metals. The process of separation presents a challenge. The various components of a PCB are difficult to separate. However, research keeps improving this procedure. The objective is to increase recycled content to the point where it lowers the demand for raw materials. The goal of this endeavor is to demonstrate that recyclable and recycled materials can satisfy the demanding quality requirements of contemporary electronics.
Materials with Low Dk/Df for Energy Efficiency
A device’s energy consumption is also influenced by the substrate material selection. Low Dk/Df Materials for Energy Efficiency are based on this concept. The dielectric constant is denoted by Dk. The dissipation factor is denoted by Df. The amount of energy lost when a signal passes through the material is indicated by these two figures. Less energy is lost when Dk and Df are lower. As a result, the chips don’t have to work as hard. They require less power. The entire electronic system becomes more energy efficient as a result. As a result, employing these Low Dk/Df Materials for Energy Efficiency is a subtle but effective method of creating Eco-Friendly PCB Boards. Data centers and other high-speed systems require less power as a result. Over the course of the device’s lifetime, this material selection lowers the total energy consumption. One of the most significant green design choices an engineer can make is probably this impact on system efficiency.
Biodegradable Materials
The creation of biodegradable materials is the most challenging objective. This entails creating a PCB that, once its use is over, can decompose naturally. Researchers are investigating substrates composed of polymers derived from silk or paper. Nature is capable of safely decomposing these materials. But modern electronics still need to be long-lasting. They must operate in hot, humid environments. For biodegradable materials, this is a major issue. The research lab is still using this technology. However, it is the path that truly eco-friendly PCB boards will take in the future. The main difficulty is creating a material that is both durable enough to last for many years and weak enough to break down rapidly when composted or subjected to particular circumstances. The e-waste issue would be entirely resolved with the successful development of dependable, fully biodegradable materials.
Beyond Copper: Eco-Friendly Conductive Inks and Substitute Interconnects
The conductive material itself is the second important area for green change. Conventional PCBs employ a subtractive method. This indicates that the entire copper sheet is placed on the board. After that, undesired copper is chemically removed. A significant amount of copper is wasted in this process. It produces a lot of chemical waste as well. Thus, new additive techniques are being created.
Conductive Inks for Printed Electronics
One novel approach is Conductive Inks for Printed Electronics. The conductive ink is only printed where the circuit traces are required, as opposed to etching away copper. It’s similar to printing on paper. We refer to this process as additive manufacturing. It requires a lot less material. Almost no chemical waste is produced during the etching process. Because of this, creating eco-friendly PCB boards is far cleaner. The problem is that etched copper has thicker traces than printed ones. This restricts how much current they can transport. Conductive inks for printed electronics are therefore primarily utilized in low-power applications. The printing process is becoming more precise. More intricate circuits and finer lines are made possible by this.onductive Inks for Printed Electronics are mostly used in lower power applications. The precision of the printing process is getting better. This allows for finer lines and more complex circuits.
Inks Based on Silver and Carbon
Silver or carbon are used in a lot of conductive inks for printed electronics. For environmental reasons, inks based on silver or carbon are preferred over copper etching. Extremely fine and flexible lines are possible with silver ink. It is frequently utilized in sensors and flexible electronics. Inks made of carbon are less expensive. They are incredibly safe to use. However, their resistance is greater. They are primarily utilized for switches or basic circuits. Harsh chemicals are less necessary when using inks based on carbon or silver. Additionally, it increases the process’s overall energy efficiency. This is a significant advancement in the production of environmentally friendly PCB boards. The process of making circuits has fundamentally changed from etching to printing. Over 90% less material is used as a result.
Alternative Metals
Another idea is to look at Alternative Metals besides copper. Copper is a great conductor. But getting copper from the ground creates a lot of pollution. It takes a lot of energy. Researchers are looking at aluminum and nickel for certain applications. These metals are more prevalent. Sometimes recycling them is simpler. They are not as good at conducting electricity as copper, though. There is a significant technical trade-off here. For the majority of high-performance circuits, copper is still the preferred material. However, the hunt for alternative metals is still ongoing. It is a means of improving the sustainability of the electronics supply chain. For example, using aluminum could reduce the final product’s embodied energy.
Eco-Friendly Production Methods
It takes more than just the finished components to create eco-friendly PCB boards. One of the main causes of environmental impact is the manufacturing process itself. The goal of sustainable manufacturing practices is to lessen this effect. This entails concentrating on the resource usage of factories. PCB manufacturing is an intricate process. There are numerous chemical steps involved. It consumes a lot of energy and water. It is difficult to alter these procedures. However, the industry’s environmental impact must be minimized. These new methods focus on making efficient use of resources. Their goal is to make the operation cleaner. This is frequently referred to as “green manufacturing.” It affects every area of the factory. For the industry to endure and develop responsibly, this change is essential.
Green PCB Manufacturing: Reducing Waste, Water, and Energy Consumption
The goal of green PCB manufacturing is to reduce waste, water, and energy consumption in order to achieve sustainable production. Environmental protection must be given top priority at every stage of production in order to guarantee that high-quality PCBs are produced with the least amount of adverse environmental impact.
Further explanation: Why are PCB boards green?
Important procedures consist of:
Wastewater Treatment and Recycling: Because PCB factories use a lot of water, they produce wastewater that contains strong acids, alkalis, and heavy metals. Reverse osmosis, ion exchange, and chemical precipitation are examples of sophisticated wastewater treatment systems that can clean wastewater and enable recycling, lowering the demand for fresh water and safeguarding water supplies.
Air Emission Control: Drilling dust, acidic fumes, and volatile organic compounds are produced during the production of PCBs. By installing devices like scrubbers, activated carbon filters, and regenerative thermal oxidizers, hazardous materials can be efficiently removed, guaranteeing clean air emissions and preserving air quality.
Optimization of Energy Efficiency: The manufacturing of PCBs uses a lot of electricity. Energy consumption and carbon footprint can be greatly decreased by implementing energy-efficient equipment, variable frequency drives, streamlining production processes to lower heating and cooling frequency, and embracing renewable energy sources like solar and wind.
Chemical Management and Substitution: A key component of green manufacturing is the substitution of safer chemicals for hazardous ones. For instance, using fewer complex organic solvents and substituting less toxic etching chemicals for dangerous ones. Environmental contamination and accidents can be avoided with strict chemical management.
According to lean manufacturing principles, production efficiency can be increased, material usage can be decreased, and error and scrap rates can be decreased by identifying and removing various types of waste from the production process, such as chemical waste, wasted time, motion, and effort. This will result in more sustainable production.
Together, these methods make up the foundation of green PCB manufacturing, which lowers production costs, increases factory efficiency, and protects the environment.

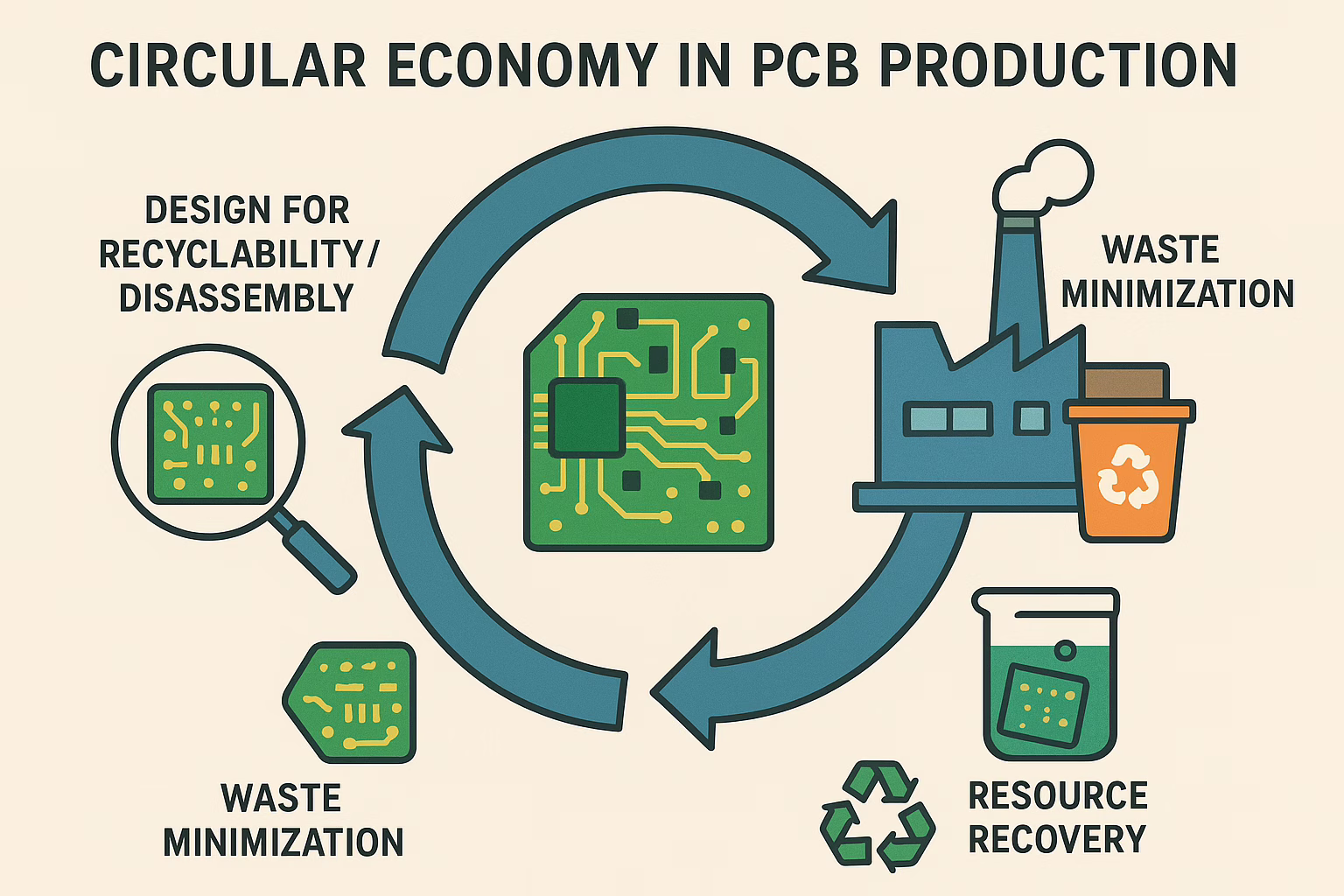

The Circular Economy in the Manufacturing of PCBs
The establishment of a circular economy in PCB production is the last and most crucial objective. This implies that after its useful life, the PCB shouldn’t be discarded. Reusing it is advised. It ought to be recycled. This extends accountability beyond the manufacturing floor. It enters the design stage. This method acknowledges that each material is a limited resource.
This starts with Design for Recyclability/Disassembly. This concept means thinking about the end of life at the start. Traditional PCBs are built to be strong. They are built to last. But they are very hard to take apart. The components and layers are glued together forever. So, the new approach is to use materials that are easier to separate. Design for Recyclability/Disassembly asks designers to use fewer different types of plastic. It asks them to use glues that can be dissolved later. It asks them to group similar materials together. This makes the recycling process much easier and cheaper. This design approach is key to achieving a true Circular Economy in PCB Production. It helps to unlock the valuable materials inside the board. It ensures the investment in Sustainable Materials is not wasted when the product is disposed of.
Inside the factory, Waste Minimization is the focus. This means preventing scraps at the source. Before we recycle, we must reduce the need for recycling. Waste Minimization is the manufacturing focus on reducing solid waste during production. This includes scraps of copper foil. It includes pieces of FR-4 laminate cut from the edges of a panel. Factories use smarter software. This software organizes the board layouts on the panel. This is called nesting. Good nesting maximizes the use of the material. It reduces the amount of material that is cut away and wasted. Waste Minimization also involves careful control of the plating process. This ensures that the copper layers are deposited correctly the first time. This avoids having to scrap a whole panel because of a small defect. This focus on efficiency is a simple but high-impact Sustainable Manufacturing Practice.
When a PCB does reach its end of life, Resource Recovery Technologies are needed. PCBs contain many valuable metals. They contain copper, gold, silver, and rare earth elements. These metals are a rich source of raw materials. The traditional method for recovery is smelting. Smelting is energy-intensive. It can release toxins. So, new Resource Recovery Technologies are being developed. These new methods include hydrometallurgy. Hydrometallurgy uses chemical solutions. It dissolves the metals selectively. This makes it possible to recover very pure metals. Another method is biometallurgy. This method uses micro-organisms. The micro-organisms eat the metals. They separate them from the plastic parts. These new Resource Recovery Technologies are much cleaner. They use less energy. They are the final step in the Circular Economy in PCB Production. They make sure that the valuable resources on the Eco-Friendly PCB Boards are used again. They are not lost in the landfill.
Conclusion
Eco-Friendly PCB Boards are the result of two major shifts. The first is the shift to Sustainable Materials. This means using Bio-based Substrates and Halogen-Free Materials. This makes the board itself safer. The second is the shift to Sustainable Manufacturing Practices. This means strict Wastewater Treatment & Recycling. It means full Air Emission Control. It means Energy Efficiency Optimization in the factory. Both parts are necessary.
The Circular Economy in PCB Production is the ultimate objective. This calls for meticulous design for disassembly and recycling. Advanced Resource Recovery Technologies are needed. This guarantees that the priceless resources on the board will be utilized repeatedly. True sustainability is defined by this comprehensive approach to the product lifecycle. This guarantees that the next generation of electronic gadgets will be both capable and accountable. Future environmental health will be determined by the decisions made today, from the choice of materials to the activities on the factory floor.
